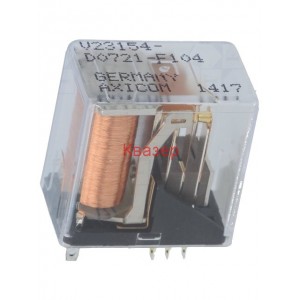

Реле V23154-D0721-F104
TE Connectivity V23154D0721F104
DPDT PCB Mount Non-Latching Relay Through Hole, 5 A, 24V dc
Neutral DC voltage coil, monostable
Plug-in and for fixed installation
Single or double contacts
Dust-protected
Description | Voltage | Coil | Contact type |
range | resistance | ||
V23154.. | at 20°C | at 20°C ±10% | |
Dust-proof with single contacts | |||
D717-F104 | 8.3 to 20V DC | 220Ω | 2 changers |
D720-B110 | 12.5 to 32V DC | 550Ω | 4 changers |
D720-F104 | 12.5 to 32V DC | 550Ω | 2 changers |
D721-B110 | 17 to 40V DC | 890Ω | 4 changers |
D721-F104 | 17 to 40V DC | 890Ω | 2 changers |
D726-B110 | 35 to 75V DC | 3200Ω | 4 changers |
Dust-proof with double contacts | |||
D720-C110 | 20 to 32V DC | 550Ω | 4 changers |
Order designation, Block 3 | B1.. and/or C1 | F1 |
Contact material | Silver, | Silver, |
gold-flashed | gold-flashed | |
Contact load: | ||
Max switching voltage: | 150 V/125 V AC | 250 V/250 V AC |
Max. switching current: | 2 A | 5A |
Max. switching capacity: | 35 - 70 W | 50 - 140W |
(voltage- | (voltage- | |
dependent) | dependent) | |
50 VA | 500 VA |
Response voltage: | 74% - 98% of nominal voltage |
permitted Ambient temp.: | -40°C to +70°C |
Protection class: | Dust-proof, IP30 |
