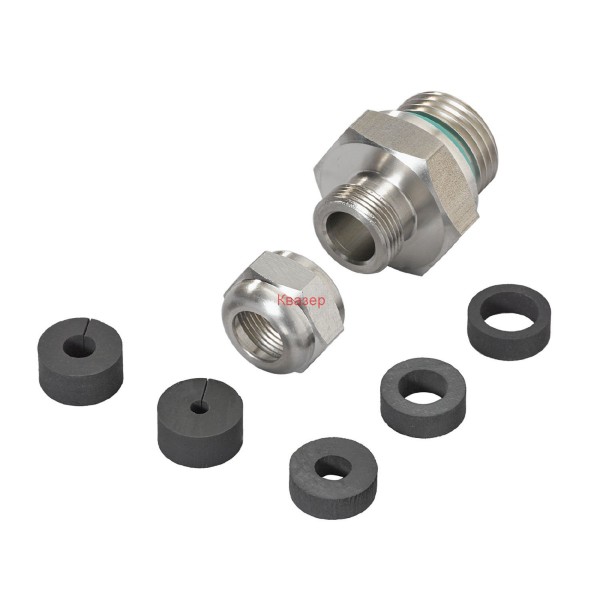

IFM E30018 CLAMP FITTING G1/2
Ref: 72148
Description:
IFM E30018 CLAMP FITTING G1/2
For the installation of temperature sensors in containers and pipes
Easy, quick and secure mounting
Stable fixing by screwing in
Use in liquids and gases
Easy adjustment of the immersion depth of the sensor
More info
Learn more about this product:
Full description
Application
Design | for temperature sensors | ||
Application | for industrial applications | ||
Installation | Clamp fitting | ||
Media | liquids and gases | ||
Pressure rating |
|
Tests / approvals
Pressure equipment directive | A possible classification to PED depends on the application and has to be carried out by the user / operator. |
Safety instructions | The compatibility between medium and product material has to be checked in all applications. |
Mechanical data
Weight[g] | 87.3 |
Material | stainless steel (1.4305 / 303); FKM |
Sensor connection | Ø 6 mm / Ø 8 mm / Ø 10 mm |
Process connection | threaded connection G 1/2 |
