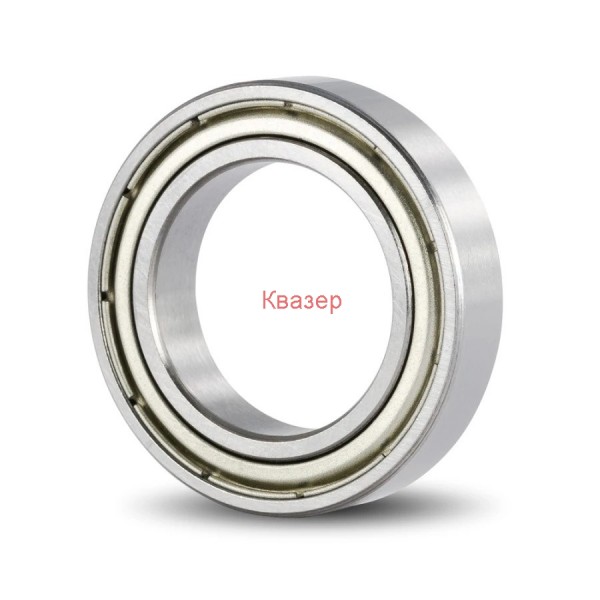

Deep Groove Ball Bearing 6804 / 61804 ZZ / 2Z 20x32x7 mm

Very narrow, very light and with extremely good spinning characteristics. The deep groove ball bearing 6804-ZZ / 2Z is very narrow and can also be used with limited space.

Technical Data

• Inside Ø (mm): 20
• Outside Ø (mm): 32
• Width (mm): 7
• Static radial load rating (N): 2390
• Dynamic radial load rating (N): 4020
• Limiting speed (1/min): 21000
• max. Operating Temperature: +120°C
• min. Operating Temperature: -20°C
• Tolerance for inside Ø (mm): 0/-0,01
• Tolerance for outside Ø (mm): 0/-0,011
• Tolerance for width (mm): 0/-0,12
• Bore: cylindrical
• Extended Inner Ring: no
• Tolerance Class: ABEC 1 / P0
• Internal Clearance: CN (Standard)
• Noise and vibration testing: Class V
• Seal: ZZ
• Ring Material: Rolling Bearing Steel
• Rolling Element Material: Rolling Bearing Steel
• Cage Material: Sheet Steel
• Sealing material: Sheet Steel
• Type of lubrication: greased
• Lifetime lubricated: yes
• Magnetic: yes
• Norm: DIN 625-1
• Item weight: 18 g
