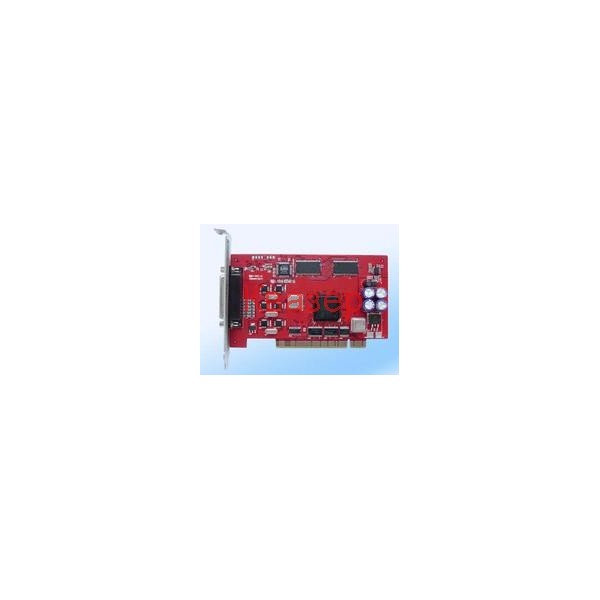

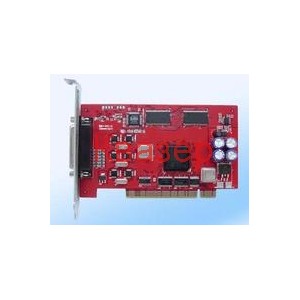

DVR HW-606TI PCI КАРТА ЗА PC

6-входов контролер за видеонаблюдение и запис на РС с 6 аудио входа,  150 кад./сек при запис (PAL); Разделителна способност при преглед на живо  704x576, 352x288 при запис;; Чипсет TI642; H.264 видео компресия и аудио ADPCM.  H.264 формат на записа. С включен  професионален софтуер (локален, мрежов и модемен), поддържан от ОС Windows 2000/XP Professional;  ISDN, DDN, PSTN, LAN, WAN, Internet, ADSL, Modem.  Дистанционно преглеждане и записване, IE browser. Непрекъснат запис, запис при движение  и запис по часове зададени от потребителя. P/T/Z control. Едно PC поддържа комбинация от платки (до 32 канала)

HW-606TI
Function Feature
·Low consumption design of the board and conformed to the PCI2.2 standard.
·Adopt Ti642 chipset; Super clear image at 704*576.
·Multiple image export format: image can be exported to be AVI files, CD, DVD in your choice.
·Mask function at any zone to any channel.
·Flexible Series Combination: 4chs/6chs/12chs-Any of them can mix to work together.
·Support 64chs (Max) for one system.
·Adopt advanced H.264 compression for Video, and ADPCM for Audio.
·Image quality level, frames rate adjustable.
·Multilevel user management,
·Remote setting for video shielding to any channel.; Remote talking, Matrix output
·E-map, email Transmission
·Watermark, Event report , Log support
·Video Color setting to any channels with time schedule
·SDK available for further development.
·Support Win2k/WinXp

Technical Parameter
ITEM HW-606TI
Video input 6channels
Audio input 6channels
Frames rate 150pfs PAL /180fps NTSC
Compression H.264/MPEG4
File size 80~200M/H/C
Multiple Cards 1~5 per PC
Display resolution PAL:704*576(4CIF) NTSC:640*480(4CIF)
record resolution PAL:352*288(CIF) NTSC:320*240(CIF)
PTZ Control from Local or remote support protocol of popular high speed dome or speed dome.
Remote
ISDN, DDN, PSTN, LAN, WAN, Internet, ADSL, Modem Multi-channel remote viewing through
IE or client software at same time; support shielding, talking, playback, central management
and so on.
Recording mode Manual, Continuous, Schedule, Event (Senor, Motion Detection) and Multi-zone motion
detection setting Simultaneity available.
Playback Freely playback at any time to any channel, Convenience search management
