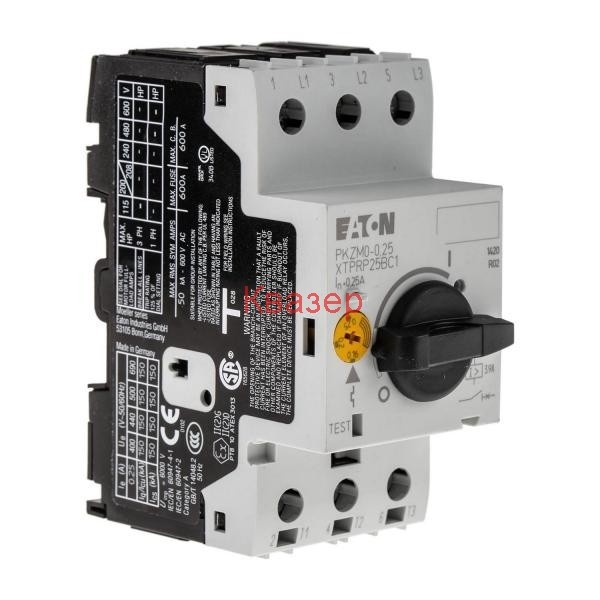

Моторна защита Eaton 072731 PKZM0-0,25

Eaton 072731 28W08 PKZM0-0,25 МОТОРНА ЗАЩИТА  / МОТОРЕН ПРЕКЪСВАЧ

Превключвател за двигател Eaton, 3P, 0.16-0.25A, IP20

Eaton 072731 PKZM0-0,25 Overload relay + rotary switch 690V AC 0.25A

• Switch/button features: + rotary switch
• Type: 3-pin
• Connection: Screw terminal
• Switching voltage: 690V AC
• Switching current (min.): 0.16A
• Switching current (max.): 0.25A
• Min. temperature: -25°C
• Max. temperature: +55°C
• IP rating: IP20, IP00
• Length: 76mm
• Width: 45mm
• Height: 93mm
• Type: PKZM0-0,25
• Dim: (L x W x H) 76 x 45 x 93 mm
• Width: 45mm
• Height: 93mm
• Depth: 76 mm
• Rated operation power at AC-3, 400 V: 0.06kW
• With integrated auxiliary switch: FALSE
• Rated permanent current Iu: 0.25A
• With integrated under voltage release: FALSE
• Number of poles: 3
• Rated operating voltage: 690-690V
• Overload release current setting: 0.16-0.25A
• Power loss: 5.15W
• Degree of protection (IP): IP20
• With thermal overload protection: FALSE
• Type of electrical connection of main circuit: Screw connection
• Type of control element: Turn button
• Switch off technique: Thermomagnetic
• Rated operation power at AC-3, 230 V: 0kW
• Rated short-circuit breaking capacity lcu at 400 V, AC: 150kA
• Adjustment range undelayed short-circuit release: 3.9-3.9A
• Phase failure sensitive: TRUE
• Device construction: Built-in device fixed built-in technique
• Product type: Overload relay
