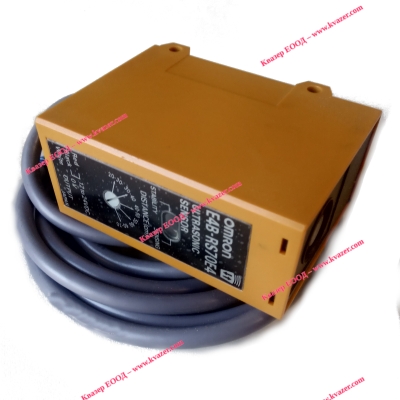

Ултразвуков сензор E4B-RS70E4 Omron
Арт.№: 56847
1 от 1
Безплатна доставка над
150.00
лв.
/
76.69
€
ППЦ:
лв.
лв.
890.00
лв.
/
455.05
€
Валидност на промоцията
до
В наличност
Доставка и плащане
Резервирай
и вземи от Добави в любими
Твоите любими продукти Сравни
Характеристики Ултразвуков сензор E4B-RS70E4 (Ultrasonic Proximity Sensor )
- Марка: Omron
- Захранващо напрежение:12 V ~ 24 V
- Консумация 12VDC: 100mA max.
- Консумация 24VDC: 50mA max.
- Честота: 20 Hz
- Температура: -10°C ~ 55°C
Информация
| Model | E4B-TS50E4 | E4B-T1E4 | E4B-LS20E4 | E4B-LS70E4 | E4B-RS70E4 | |
|---|---|---|---|---|---|---|
| Sensing method | Through-beam | Convergent reflective distance |
Convergent reflective zone |
|||
| Sensing distance | 50 cm | 1 m | 5 to 20 cm | 20 to 60 cm (20 to 70 cm) *1 |
20 to 60 cm (20 to 70 cm) *1 (in 10-cm divisions) |
|
| Supply voltage | 12 to 24 VDC ± 10% (10.8 to 26.4 VDC) with a max. ripple ±10% (p-p) | |||||
| Current consumption | 12 VDC | Emitter: 155 mA max. Receiver: 30 mA max. |
Emitter: 70 mA max. Receiver: 30 mA max. |
100 mA max. | ||
| 24 VDC | Emitter: 80 mA max. Receiver: 30 mA max. |
Emitter: 50 mA max. Receiver: 30 mA max. |
50 mA max. | |||
| Standard sensing object |
10 x 10 cm flat plate | 4 x 4 cm flat plate | ||||
| Differential travel | --- | 20% max. of sensing distance |
3 cm max. | |||
| Directional angle *2 | ±8° max. | |||||
| Ultrasonic oscillation frequency |
Approx. 200 kHz | |||||
| Response frequency *4 | 50 Hz | 10 Hz | 50 Hz | 20 Hz | ||
| Operating mode | Incident or interrupted (selectable) | |||||
| Control output | NPN, 100 mA at 30 VDC (with a residual voltage of 1.5 V max.) and an output resistance of 4.7 kΩ |
|||||
| Indicators | SENSING indicator (red LED) and STABILITY indicator (green LED) | |||||
| Ultrasonic speed compensation |
No | Yes | ||||
| Ambient temperature | Operating: -10°C to 55°C | |||||
| Ambient humidity | Operating: 35% to 95% | |||||
| Temperature influence | ±10% max. of sensing distance at 20°C in the temperature range of -10°C and 55°C | |||||
| Voltage influence | ±5% max. of sensing distance at a voltage between 90% and 110% of the rated power supply voltage |
|||||
| Residual voltage | 1.5 V max. under a load current of 100 mA and a cord length of 2 m | |||||
| Insulation resistance | 20 MΩ min. (at 500 VDC) between current carry parts and case | |||||
| Dielectric strength | 1,000 V (50/60 Hz) for 1 min between current carry parts and case | |||||
| Vibration resistance | Destruction: 10 to 55 Hz, 1.5-mm double amplitude for 2 hours each in X, Y, and Z directions | |||||
| Shock resistance | Destruction: 500 m/s2 (approx. 50G) 3 times each in X, Y, and Z directions. | |||||
| Degree of protection *3 | IEC IP66 (JEM IP66 water resistive) | |||||
