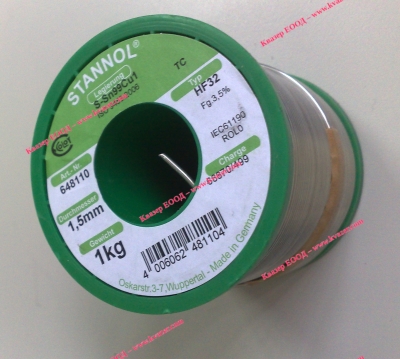

ТИНОЛ безоловен тип HF32 S-Sn99.3Cu0.7 FG3.5%, ф1.5mm, 1kg/STANNOL
HF32 безоловен тинол Sn99.3Cu0.7 FG3.5%, ф1.5mm, 1kg/STANNOL
- Производител: STANNOL Германия
- Тип свързв. в-во: за меко запояване
- Състав на сплавта: Sn99.3Cu0.7
- Форма: тел
- Диаметър: 1,5мм
- Маса: 1кг
- Съдържание на флюс: 3,5% в съответствие IEC68870/499 ROL0
- Вид опаковане: макара
- Приложение: за безоловно запояване
- Съответствие със стандарт: ISO 9453:2006
Информация
SOLDER WIRE HF32
DESCRIPTION
The HF32 electronics soldering wire is based on a "No-Clean" flux and is available with lead-free and alloys containing lead. It has been developed for high requirements for conventional soldering and for soldering SMDs in industrial production and for repair and resoldering.
The wire flux HF32 is a halogen-free activated flux based on natural and modified resins. it combines high activity and good flow characteristics in an outstanding way with minimal, light, usually hardly visible, solid and electrically safe residues.
PRODUCT ADVANTAGES
- Halogen-free activation
- Reduced resin amount
- High proportion of organic acids
- Less fumes
AVAILABILITY
HF32 wires are available in the common lead-free and alloys containing lead. Diameters from 0.3 to 3.0 mm and all common coil sizes round off the range.
APPLICATION
HF32 can be used for manual and machine soldering in the area of electrical engineering and electronics.
