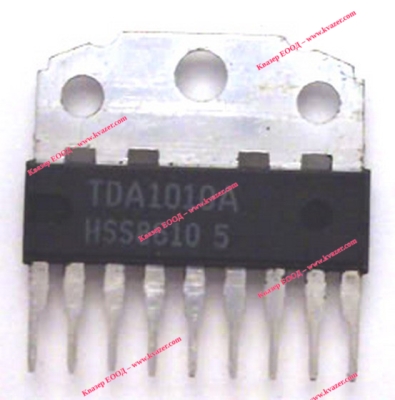

TDA 1010A
Арт.№: 861
1 от 2
Безплатна доставка над
с куриер Спиди
76.69
€
/
149.99
лв.
ППЦ:
€
€
2.8377
€
/
5.5501
лв.
Валидност на промоцията
до
В наличност
Доставка и плащане
Резервирай
и вземи от Добави в любими
Твоите любими продукти Сравни
Характеристики TDA 1010A
6 W audio power amplifier in car applications
10 W audio power amplifier in mains-fed
Информация
The TDA1010A is a monolithic integrated class-B audio amplifier circuit in a 9-lead single in-line (SIL) plastic package.
The device is primarily developed as a 6 W car radio amplifier for use with 4 Ωand 2 Ωload impedances. The wide supply
voltage range and the flexibility of the IC make it an attractive proposition for record players and tape recorders with
output powers up to 10 W.
Special features are:
• single in-line (SIL) construction for easy mounting
• separated preamplifier and power amplifier
• high output power
• low-cost external components
• good ripple rejection
• thermal protection
QUICK REFERENCE DATA
PACKAGE OUTLINE
9-lead SIL; plastic (SOT110B); SOT110-1; 1996 Sepetember 06.
Supply voltage range VP 6 to 24 V
Repetitive peak output current IORM max. 3 A
Output power at pin 2; dtot = 10%
VP = 14,4 V; RL = 2 Ω Po typ. 6,4 W
VP = 14,4 V; RL = 4 Ω Po typ. 6,2 W
VP = 14,4 V; RL = 8 Ω Po typ. 3,4 W
VP = 14,4 V; RL = 2 Ω; with additional bootstrap resistor of 220 Ω between
pins 3 and 4 Po typ. 9 W
Total harmonic distortion at Po = 1 W; RL = 4 Ω dtot typ. 0,2 %
Input impedance
preamplifier (pin 8) ⎪ Zi ⎪ typ. 30 kΩ
power amplifier (pin 6) ⎪ Zi ⎪ typ. 20 kΩ
Total quiescent current at VP = 14,4 V Itot typ. 31 mA
Sensitivity for Po = 5,8 W; RL = 4 Ω Vi typ. 10 mV
Operating ambient temperature Tamb −25 to + 150 °C
Storage temperature Tstg −55 to + 150 °C
PACKAGE OUTLINE
9-lead SIL; plastic (SOT110B); SOT110-1; 1996 Sepetember 06.
Supply voltage range VP 6 to 24 V
Repetitive peak output current IORM max. 3 A
Output power at pin 2; dtot = 10%
VP = 14,4 V; RL = 2 Ω Po typ. 6,4 W
VP = 14,4 V; RL = 4 Ω Po typ. 6,2 W
VP = 14,4 V; RL = 8 Ω Po typ. 3,4 W
VP = 14,4 V; RL = 2 Ω; with additional bootstrap resistor of 220 Ω between
pins 3 and 4 Po typ. 9 W
Total harmonic distortion at Po = 1 W; RL = 4 Ω dtot typ. 0,2 %
Input impedance
preamplifier (pin 8) ⎪ Zi ⎪ typ. 30 kΩ
power amplifier (pin 6) ⎪ Zi ⎪ typ. 20 kΩ
Total quiescent current at VP = 14,4 V Itot typ. 31 mA
Sensitivity for Po = 5,8 W; RL = 4 Ω Vi typ. 10 mV
Operating ambient temperature Tamb −25 to + 150 °C
Storage temperature Tstg −55 to + 150 °C
