Информация

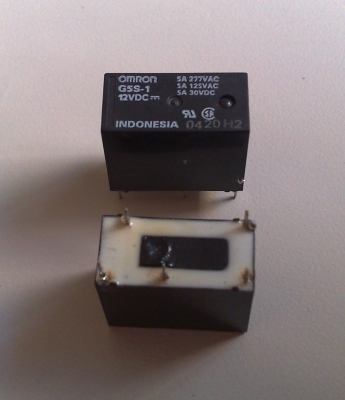

| Series | G5S |
|---|---|
| Relay Type | General Purpose |
| Coil Type | Non Latching |
| Coil Current | 33.3mA |
| Coil Voltage | 12VDC |
| Contact Form | SPDT (1 Form C) |
| Contact Rating (Current) | 5A |
| Switching Voltage | 277VAC, 30VDC - Max |
| Turn On Voltage (Max) | 9 VDC |
| Turn Off Voltage (Min) | 0.6 VDC |
| Features | Insulation - Class B, Sealed - Fully |
| Mounting Type | Through Hole |
| Termination Style | PC Pin |
| Packaging | Bulk |
| Contact Material | - |
| Operate Time | 10ms |
| Release Time | 5ms |
| Coil Power | 400 mW |
| Coil Resistance | 360 Ohms |
| Operating Temperature | -40°C ~ 85°C |
| Other Names | G5S1CBDC12 |
