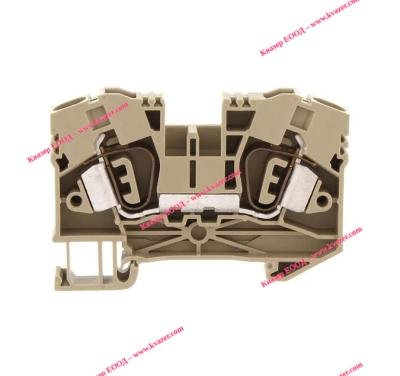

Редова клема 10кв.мм. ZRK 10/2A BG CONTA CLIP

ZRK 10/2A BG
Feed-through terminal, Tension-spring connection, Mounting type: Mounting rail TS 35/7.5, Rated cross-section: 10 mm², Width: 10.1 mm, Colour: Beige

Dimensions

• Length: 73.5 mm
• Width: 10.1 mm
• Height TS 35/7.5: 50.5 mm
• Ratings
• Rated voltage: 1000 V
• Rated current: 57 A
• Rated cross-section: 10 mm²
• Rated impulse voltage: 8 kV
• Overvoltage category: III
• Contamination degree: 3
• Maximum power dissipation for nominal condition: 1.82 W

Connection data

• Connection principle: Tension-spring connection
• Connection position: Diagonal
• Connections: 2
• Number of terminals per level: 2
• Number of levels: 1
• Wire cross-section single-core (rigid) / stranded, min.: 1.5 mm²
• Wire cross-section single core (rigid)/stranded, max.: 16 mm²
• Wire cross-section stranded, min.: 1.5 mm²
• Wire cross-section stranded, max.: 10 mm²
• Wire cross-section stranded with wire-end ferrules, min.: 1.5 mm²
• Wire cross-section stranded with wire-end ferrules, max.: 10 mm²
• Wire cross-section AWG, min.: 16
• Wire cross-section AWG, max.: 6
• Stripping length: 18 mm

Materials

• Insulation housing: Polyamide 6.6
• Flammability class UL 94: V-0
• Working temperature, min.: -40 °C
• Working temperature, max.: 120 °C
• Further technical data
• Mounting type: Mounting rail TS 35/7,5
• Gauge plug acc. to EN 60 947-1: B6
• Number of cross-connection channels: 2
• End plate required:
• Number of test pick-off options: 2
