E-CH 9008-H 8 канален H.264 HVR

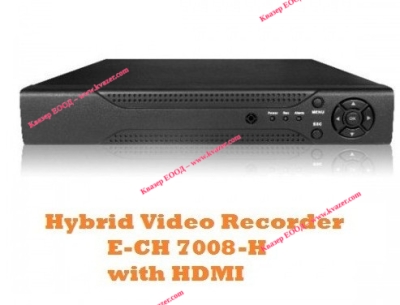

8 КАНАЛЕН ХИБРИДЕН DVR/NVR 7008-H С HDMI
Хибридно записващо устройство E-CH 7008-H зааналогови и IP камери с 8 видео канала, видео изход по BNC/VGAи HDMI и аудио - 4 входa/1 изход.
HVR рекордерът дава възможност за запис на следните резолюции:
- аналогови камери - 8*D1
- IP камери - 9*D1/8*960H /4*720P / 2*1080P/1*720P+7*D1/ 1*1080P+1*720P+2*D1
- аналогови + IP - 2 *D1+(1*1080P+1*720P)
Информация
Поддръжка на SMART CLOUD функция позволяваща отдалечен дотъп без наличие на реален ip адрес и лесно управление с меню на български.
HVR устройството притежава Pentaplex функция - на живо, запис, възпроизвеждане , архивиране и отдалечен достъп и "Smart" видео детекция за запис при режим motion detection, video blind, video loss.
Хибридният видеорекордер поддържа PTZ контрол , RG45 за връзка с LAN, 2 USB входа, отдалечен достъп през интернет чрез IE & Firefox & Safari & Chrome + iPhone, Blackberry, Android, Nokia and windows mobile за мобилен телефон.
Технически параметри:
|
System |
Model |
E-CH 7008-H |
|
Main Processor |
1*Hi3520A |
|
|
Operating System |
Embedded LINUX |
|
|
System Resources |
Pentaplex function: live, recording, playback, backup & remote access |
|
|
User Interface |
GUI, on-screen menu tips |
|
|
Control Device |
Front panel, USB mouse, IR remote control |
|
|
Video |
Video Standards |
PAL 625 line, 50 f/s; NTSC 525 line, 60 f/s |
|
|
Video Compression |
H.264 High profile |
|
|
Video Recording |
D1:PAL 1f/s-25f/s NTSC 1f/s-30f/s; |
|
|
Motion Detection |
Zones:192 (16*12) detection zones, Sensitivity: 1-6 (6 is highest) Trigger recording, tour, alarm, e_mail & FTP |
|
|
TV Output Audjustment |
Adjust TV output color & display zone |
|
Audio |
Audio Conpression |
G711A |
|
Bidrectional Talk |
Support |
|
|
Record & Playback |
Recording Mode |
Manual>Alarm>Video Detection>Continuous |
|
Playback |
200/240fps D1 recording, 25/30fps D1 decoding, Max 8ch playback Pause, stop, rewind, fast play, slow play, next file, previous file, repeat, shuffle, backup selection |
|
|
Search Mode |
Time/Date, Alarm, Motion Detection & exact search (accurate to second) |
|
|
Storage & Backup |
Space Occupation |
Video: 1080p 80G/day/ch, 720p 26G/day/ch, 960H 24G/day/ch, D1 16~20G/day/ch ; Audio: 691.2M/day/channel |
|
HDD Management |
Hard disk hibernation technology,HDD faulty alarm & Raid(Redundancy) |
|
|
Backup Mode |
Network download/Flash stick |
|
|
Interface |
Video Input |
8 channel |
|
|
Video Output |
1ch TV,1ch VGA,1ch HDMI |
|
|
Audio Input |
4ch |
|
|
Audio Output |
1 ch |
|
|
Hybrid Mode |
Only Analog: 8*D1 Analog + IP: 2 *D1+(1*1080P+1*720P) Only IP: 9*D1/8*960H /4*720P / 2*1080P/1*720P+7*D1/ 1*1080P+1*720P+2*D1 |
|
|
Net Interface |
RJ-45 (10M/100M) |
|
|
USB Interface |
2*USB2.0 ports |
|
|
PTZ Control |
1 RS485 |
|
|
3G/WIFI |
Support |
|
|
Hard Disk |
1 SATA port(Max 3T) |
|
Environmental |
Power Supply |
12V/3A |
|
Power Consumption |
<10W |
|
|
Working Temperature |
0-55 |
|
|
Working Humidity |
10%-90% |
|
|
Atmosphere Pressure |
86kpa-106kpa |
|
|
Dimension |
26*20*4.3cm |
|
|
Weight |
1.8KG |
|
|
Mounting |
Desktop |
