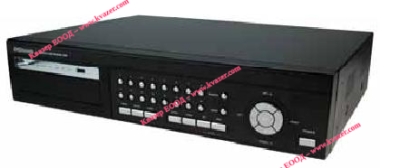

DVR DG1648 16ch MPEG4
DVR DG1648 16ch MPEG4
16 канала, Pentaplex ,400 кад/сек при CIF, MPEG-4, 4 audio входа
Информация
Features
MPEG4 DVR Technology to provide clear images with real-time performance locally, and faster network transmission remotely
Graphical & Multilingual OSD Interface for easier operation
Remote Independent Operation allows you to individually see the live view of a single channel without changing the display setting from AP side
Intelligent Motion Trigger Recording (R.E.T.R) to activate event recording automatically when any alarm is triggered with 8MB pre-alarm recording, and send images to the designated E-mail address / FTP address
Excellent CIF Image Quality and Performance for Clearer and detailed images
Huge Storage Capacity (Up to 1.5 TB storage capacity) with up to 3 HDD accommodation, or 2 HDD accommodation + independent disk array (DG1648 & DG 0824 only)
Free Upgrade to Advanced DVR Functions without any charges
Backup recorded data with USB 2.0 flash drive or DVD writer, or via network
Remote Surveillance up to 5 users simultaneously via the licensed software AP & IE web browser
Multiplex Operation to support live display, record, playback, backup, and network operations at the same time
Covert Recording to replaces the live image with a blank screen and the monitor shows nothing, but the recording is still on
A/V support
+Support 4 audio-in, 2 audio-out to record sounds (DG1648 & DG0824 only)
+Support VGA output to monitor (optional)
General
+ Support IR remote control
+ System auto recovery after reconnected
+ Support PTZ camera operations
+ Support daylight saving function
+ Support manual / timer / motion / alarm / network recording
+ Ensure the authentication of record images with Watemark function
+ Support TCP/IP, PPPoE, DHCP and DDNS network connection
Specifications
|
MODEL |
DG1648D(UK) |
|
Video System |
NTSC / PAL (auto switchable) |
|
Video Compression Format |
MPEG4 |
|
Video Input |
16 Channels |
|
Video Loop Output |
16 Channels |
|
Video Output |
Main Monitor Output: Composite video signal 1 Vp-p 75 Ω BNC ； |
|
Maximum Recording Rate (Frame) |
720 × 480 pixels with 120 IPS |
|
Maximum Recording Rate (CIF) |
352 × 240 pixels with 480 IPS |
|
Adjustable Recording Speed (Frame) |
120, 60, 30, 15 IPS |
|
Adjustable Recording Speed (CIF) |
480, 240, 120, 60 IPS |
|
Multilingual OSD |
YES |
|
Image Quality Setting |
Best, High, Normal , and Basic |
|
Hard Disk Storage |
Accommodate 3 HDDs*, or 2 HDDs plus independent disk array* |
|
HDD Quick Cleaning |
Quick clean up the "index system" of the recorded files (750GB under 2 seconds) |
|
Recording Mode |
Manual / Timer / Motion / Alarm / Remote |
|
Watermark |
YES |
|
Refresh Rate |
480 IPS for NTSC / 400 IPS for PAL |
|
Multiplex Operation |
Live display, record, playback, backup and network operations |
|
Independent Remote Operation |
YES |
|
Audio I/O |
4 audio inputs, 2 audio outputs (Mono) |
|
R.E.T.R. |
YES |
|
Motion Detection Area |
16 × 12 grids per camera for all channels |
|
Motion Detection Sensitivity |
4 adjustable variables with precise calculation for motion detection |
|
Pre-alarm Recording |
Yes (8 MB) |
|
Backup Device |
1. USB flash drive backup; 2. Network remote backup; 3. DVD-RW drive backup |
|
USB Interface |
Front panel * 1 |
|
Web Transmitting Compression Format |
MPEG-4 |
|
Ethernet |
10/100 Base-T. Support remote control and live view via Ethernet |
|
Web Interface |
Support licensed software AP and IE browser (5 users simultaneously) |
|
Remote Alarm Notification |
Email images, and upload images to FTP site's specific account |
|
Network Protocol |
TCP/IP, PPPOE, DHCP and DDNS |
|
IR Transmitter |
YES |
|
PTZ Control |
Yes |
|
Dwell Time (Sequential Channel Switch) |
Programmable with adjustable dwell time (3, 5, 10, 15 sec.) |
|
Alarm I/O |
16 inputs, 1 output |
|
Picture Zoom |
2X digital zoom |
|
Key Lock (Password Protection) |
YES |
|
Video Loss Detection |
YES |
|
Camera Title |
Support up to 6 letters |
|
Video Adjustable |
Hue / Color / Contrast / Brightness |
|
Date Display Format |
YY/MM/DD, DD/MM/YY, MM/DD/YY, and Off |
|
Daylight Saving |
YES |
|
Power Source |
DC 19V |
|
Power Consumption |
< 64 W |
|
Operating Temperature |
10 °C ~ 40 °C ( 50 °F ~ 104 °F ) |
|
Dimensions (mm) |
432mm (W) × 90mm (H) × 326mm (D) |
|
System Recovery |
System auto recovery after power reconnected |
|
Optional Peripherals |
Independent disk array, VGA converter, VGA converter, SATA converter, Keyboard Controller |
