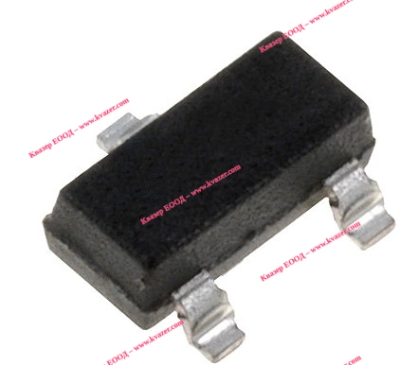

BSR15 smd
Арт.№: 53393
1 от 1
Безплатна доставка над
с куриер Спиди
76.69
€
/
149.99
лв.
ППЦ:
€
€
0.1534
€
/
0.30
лв.
Валидност на промоцията
до
В наличност
Доставка и плащане
Резервирай
и вземи от Добави в любими
Твоите любими продукти Сравни
Характеристики BSR 15 smd Bipolar Transistors - BJT PNP Transistor General Purpose
-40 V, 200 MHz, 350 mW, -800 mA, 30 hFE
Obsolete, hard to find, No Longer Manufactured!
Информация
BSR15 - Bipolar (BJT) Single Transistor, PNP, -40 V, 200 MHz, 350 mW, -800 mA, 30 hFE
- Mounting Style: SMD/SMT
- Package/Case: SOT-23-3
- Transistor Polarity: PNP
- Configuration: Single
- Collector- Emitter Voltage VCEO Max: - 40 V
- Collector- Base Voltage VCBO: - 60 V
- Emitter- Base Voltage VEBO: - 5 V
- Collector-Emitter Saturation Voltage: - 1.6 V
- Maximum DC Collector Current: 0.8 A
- Gain Bandwidth Product fT: 200 MHz
- Minimum Operating Temperature: - 55 °C
- Maximum Operating Temperature: + 150 °C
- Series: BSR15
- DC Current Gain hFE Max: 300
- Height: 0.93 mm
- Length: 2.92 mm
- Packaging: Reel
- Continuous Collector Current: 0.8 A
- Pd - Power Dissipation: 350 mW
- Product Type: BJTs - Bipolar Transistors
- Unit Weight: 8 mg
