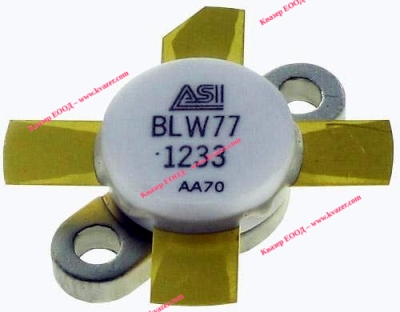

Характеристики BLW 77, RF POWER TRANSISTORS 130W 28V 1.6-28MHz
- Type: RF Bipolar Power
- Transistor Polarity: NPN
- DC Collector/Base Gain hFE Min: 15
- Maximum Operating Frequency: 28MHz
- Collector- Emitter Voltage VCEO Max: 35V
- Emitter- Base Voltage VEBO: 3V
- Continuous Collector Current: 12A
Разпродаден! Доставка при поръчка!
Информация
BLW77 RF POWER TRANSISTORS 130W 28V 1.6-28MHz GOLD VERY RARE
- Type: RF Bipolar Power
- Transistor Polarity: NPN
- DC Collector/Base Gain hFE Min: 15
- Maximum Operating Frequency: 28 MHz
- Collector- Emitter Voltage VCEO Max: 35 V
- Emitter- Base Voltage VEBO: 3V
- Continuous Collector Current: 12 A
- Maximum Operating Temperature: + 200 ℃
- Power Dissipation: 245 W
- Mounting Style: Screw
- Package/Case: SOT-123
- Packaging: Tray
- Maximum DC Collector Current: 30 A
- Minimum Operating Temperature: - 65 C
