BD244
Арт.№: 24898
1 от 1
Безплатна доставка над
с куриер Спиди
76.69
€
/
149.99
лв.
ППЦ:
€
€
0.3784
€
/
0.7401
лв.
Валидност на промоцията
до
В наличност
Доставка и плащане
Резервирай
и вземи от Добави в любими
Твоите любими продукти Сравни

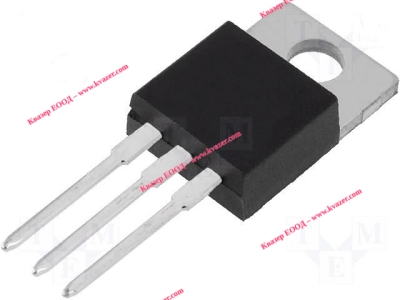

Характеристики BD 244 /PMC
Designed for Complementary Use with the
BD243 Series
l 65 W at 25°C Case Temperature
l 6 A Continuous Collector Current
l 10 A Peak Collector Current
l Customer-Specified Selections Available
Информация
Si-PNF-L, 115V, 6A, 65W, >3 MHz
Collector-emitter voltage (RBE = 100 Ω)
VCER
BD244 -55V
BD244A -70V
BD244B -90V
BD244C -115V
PNP SILICON POWER TRANSISTORS
- Описание
- TRANSISTOR, PNP, TO-220
- Transistor Polarity:PNP
- Collector-to-Emitter Breakdown Voltage:100V
- Power Dissipation Pd:65W
- DC Collector Current:6A
- DC Current Gain hFE:30
- Transistor Case Style:TO-220
- No. of Pins:3
- Application Code:GP
- Case Style:TO-220
- Current Ic hFE:0.3A
- Device Marking:BD244C
- Full Power Rating Temperature:25°C
- Max Current Ic:6A
- Max Current Ic Continuous a:6A
- Max Power Dissipation Ptot:65W
- Max Voltage Vce Sat:-1.5V
- Min Gain Bandwidth ft:3MHz
- Min Hfe:30
- No. of Transistors:1
- Power Dissipation:65W
- Termination Type:Through Hole
- Transistor Type:Bipolar
- Voltage Vcbo:100V
