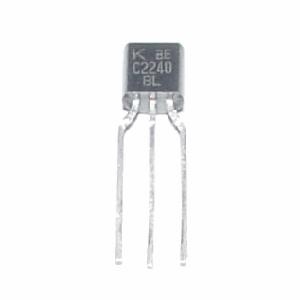

2SC2240
Арт.№: 3432
1 от 2
Неналичен
Доставка и плащане
Добави в любими
Твоите любими продукти Сравни
Характеристики 2SC 2240
Low Noise Audio Amplifier Applications
The 2SC2240 is a transistor for low frequency and low noise
applications. This device is designed to lower noise figure in the region of
low signal source impedance, and to lower the pulse noise. This is
recommended for the first stages of Equalizer amplifiers.
Разпродадени!
Информация
Si-NNF, ra, 120V, 0,1A, 0,3W, 100 MHz
Low noise : NF = 4dB (typ.) RG = 100 Ω, VCE = 6 V, IC = 100 μA,
f = 1 kHz
: NF = 0.5dB (typ.) RG = 1 kΩ, VCE = 6 V, IC = 100 μA,
f = 1 kHz
Low pulse noise: Low 1/f noise
High DC current gain: hFE = 200~700
High breakdown voltage: VCEO = 120 V
TOSHIBA Transistor Silicon NPN Epitaxial Type (PCT process)
