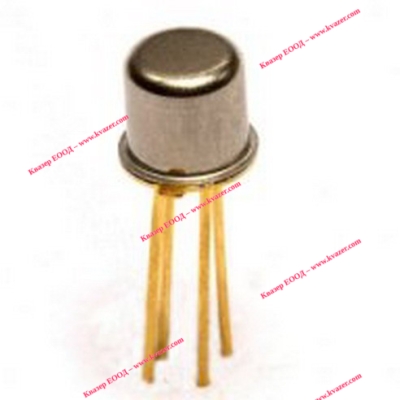

2N4416A

N-Channel JFET High Frequency Amplifier
Excellent High-Frequency Gain:
2N4416/A, Gps 13 dB (typ) @ 400 MHz
Very Low Noise: 3 dB (typ) @ 400 MHz
Very Low Distortion
High AC/DC Switch Off-Isolation Wideband High Gain
Very High System Sensitivity High Quality of Amplification
High-Speed Switching Capability High Low-Level Signal Amplification

High-Frequency Amplifier/Mixer Oscillator Sample-and-HoldVery Low Capacitance Switches


Gate-Drain, Gate-Source Voltage :
(2N/SST4416) . . . . . . . . . . . . . . . . . . . . . –30 V
(2N4416A) . . . . . . . . . . . . . . . . . . . . . . . . . –35 V
Gate Current . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 mA
Lead Temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 300 °C
Storage Temperature : (2N Prefix) . . . . . . . . . . . . . . . . . . –65 to 200 °C
(SST Prefix) . . . . . . . . . . . . . . . . . –65 to 150°C
Operating Junction Temperature . . . . . . . . . . . . . . . . . . . . . . . . . –55 to 150 °C
Power Dissipation : (2N Prefix)a . . . . . . . . . . . . . . . . . . . . . . 300 mW
(SST Prefix)b . . . . . . . . . . . . . . . . . . . . 350 mW
Notes
a. Derate 2.4 mW/°C above 25°C
b. Derate 2.8 mW/°C above 25°C
