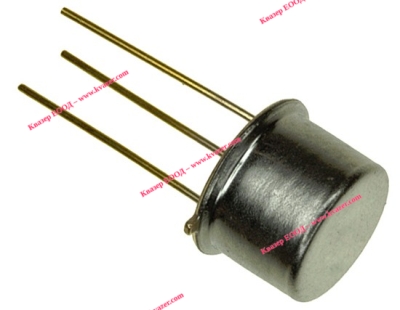

2N3439

2N3439

• Mounting Style: Through Hole
• Package/Case:  TO-39-3
• Transistor Polarity: NPN
• Configuration: Single
• Collector- Emitter Voltage VCEO Max: 350 V
• Collector- Base Voltage VCBO: 450 V
• Emitter- Base Voltage VEBO: 7 V
• Collector-Emitter Saturation Voltage:  0.5 V
• Maximum DC Collector Current:  1 A
• Gain Bandwidth Product fT: 15 MHz
• Maximum Operating Temperature:  + 200 C°
• Continuous Collector Current: 1 A
• DC Collector/Base Gain hFE Min: 30
• DC Current Gain hFE Max: 160
• Height:  6.6 mm (Max)
• Length: 9.4 mm (Max)
• Minimum Operating Temperature:  - 65 C°
• Packaging:  Bulk
• Pd - Power Dissipation:  10000 mW
