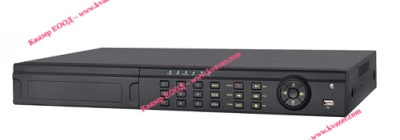

16-канален NVR TVT - TD2816NE-C
TD2816NE-C 16 канален мрежов рекордер.
- 2 x SATA
- Linux OS
- H.264 компресия
- Запис на 16 IP камери 1080P/200FPS, 720P/400FPS
- Едновременно възпроизвеждане на 16 камери.
- 16 алармени входа/1 изход.
- Локален мониторен изход VGA 1080p; HDMI 1080P
- RS485, USB, CMS за серия TD
- Вграден 3GP server – наблюдение през мобилен телефон/ I-Phone
- вграден WEB server
- Mouse control
Информация
16 канален мрежов рекордер TD2816NE
- 2 x SATA
- Linux OS
- H.264 компресия
- Запис на 16 IP камери 1080P/200FPS, 720P/400FPS
- Едновременно възпроизвеждане на 16 камери.
- 16 алармени входа/1 изход.
- Локален мониторен изход VGA 1080p; HDMI 1080P
- RS485, USB, CMS (Central Management Software) за серия TD
- Вграден 3GP server – наблюдение през мобилен телефон/ I-Phone
- вграден WEB server
- Mouse control
- Meню на БЪЛГАРСКИ ЕЗИК
- Производител: TVT
- Гаранция: 24м.
Feature:
- Support 8 / 16 / 32 CH 3MP@30fps or 1080P@30fps or 960P@30fps or 720P@30fps IP input
- Adopt standard H.264 high profile compression format to get high-quality video at much lower bit rate
- Intuitive and user-friendly Graphic User Interface ( GUI ), Windows style operation by mouse
- Multi-mode recording: manual / timer / motion / sensor
- Playback : support 4 CH playback
- Search : calendar / time, events ( sensor, motion )
- Express and flexible backup via USB, network or DVD-RW ( SATA )
- Pentaplex : preview, record, playback, backup and remote access
- DHCP, DDNS, PPPoE network protocol and CMS supported
- Remote control via IE or CMS : preview, playback, backup, PTZ and configuration
- Dual streaming technology to encode recording stream and network stream separately . User can adjust network stream to fit bandwidth without changing recording quality
- Multi-user online simultaneously
- HDMI 1080P output, true high resolution display
- Support PTZ preset and auto cruise, up to 128 presets and 8 cruises
- Powerful smart phone surveillance supporting iPhone, Andriod.
- Complete SDK software available, easy to integrate with other applications
Specifications:
|
Model |
TD-2808NE-C |
TD-2816NE-C |
TD-2832NE-C |
|
|
System |
Compression |
Standard H.264/MPEG4 |
||
|
CPU |
Cortex A9 |
|||
|
OS |
Embedded Linux |
|||
|
Video |
Output |
HDMI*1:1080P(1920*1080) |
||
|
VGA*1:1080P(1920*1080) |
||||
|
IP input |
Resolution |
3MP/1080P/960P/720P |
||
|
Frame rate |
8CH 3Mp/1080P/960P/720P @30fps |
16CH 3Mp/1080P/960P/720P @30fps |
32CH 3Mp/1080P/960P/720P@ 30fps |
|
|
Audio |
Input |
8 CH IPC input |
16 CH IPC input |
32 CH IPC input |
|
Output |
RCA*1 |
|||
|
2-way audio |
RCA*1 |
|||
|
Record |
Resolution |
3MP:2048x1536 |
||
|
1080P:1920*1080 |
||||
|
960P:1280x960 |
||||
|
720P:1280*720 |
||||
|
D1:704*576 |
||||
|
Frame rate |
200fps(PAL) |
400fps(PAL) |
800fps(PAL) |
|
|
240fps(NTSC) |
||||
|
Bit Rate: |
256Kbps~12Mbps |
|||
|
Encode |
CBR |
|||
|
Quality |
6 level |
|||
|
Mode |
Manual, Timer, Motion,Sensor |
|||
|
File manage |
Lock, unlock, reserving time, |
|||
|
Playback |
Playback |
4CH |
||
|
Search |
Time/Calendar search,event(motion,external alarm) |
|||
|
Smart Search |
Apply different colors to display whether a channel in a period of time recording or not |
|||
|
Function |
Play, Pause, FF, FB;Digital zoom |
|||
|
Alarm |
Mode |
Sensor, Motion, Video Loss |
||
|
Input |
4 CH local input,support IPC alarm input |
|||
|
Output |
1CH |
|||
|
Triggering |
Record, PTZ mode,alarm out,e-mail, etc |
|||
|
Network |
Interface |
RJ45 10M/100M/1000M adaptive ethernet network port x 1 |
||
|
Protocal |
TCP/IP, UDP, DHCP, DNS, PPPOE, DDNS ,E-mail |
|||
|
Others |
20 users online,dual stream |
|||
|
Cell phone |
OS |
iPhone,Andriod |
||
|
Function |
Multi-screen surveillance(for certain model),record,snapshot,PTZ control,save the device list |
|||
|
Port |
HDD |
SATAx 2,3T per HDD |
||
|
RS485 |
RS485*1, support PTZ and keyboard |
|||
|
USB |
USB3.0 x 1,USB2.0x1, one for mouse,another for USB backup device |
|||
|
Remote controller |
Yes |
|||
|
Others |
Power supply |
DC12V |
||
|
Consumption |
＜10W(without HDD) |
＜10W(without HDD) |
＜10W(without HDD) |
|
|
Dimensions |
430mm *300mm *55mm（W*D* H） |
|||
|
Working Environment |
-10~55°C, 10%~90% (Humidity) |
|||
