Електрическа износоустойчивост: 10000000 цикъла
Механична издръжливост: 10000000 цикъла
Тегло на изделието: 0.25 kg
IP степен на защита: IP66 съответстващ на IEC 60529
Температура на околния въздух за работа: -25...70 °C
Материал на корпуса: Zamak
|
Main
|
Range of product
|
OsiSense XC
|
|
Series name
|
Standard format
|
|
Product or component type
|
Limit switch
|
|
Device short name
|
XCKM
|
|
Sensor design
|
-
|
|
Body type
|
Fixed
|
|
Head type
|
Multi-directional head
|
|
Material
|
Metal
|
|
Fixing mode
|
By the body
|
|
Movement of operating head
|
Multi-directional
|
|
Type of operator
|

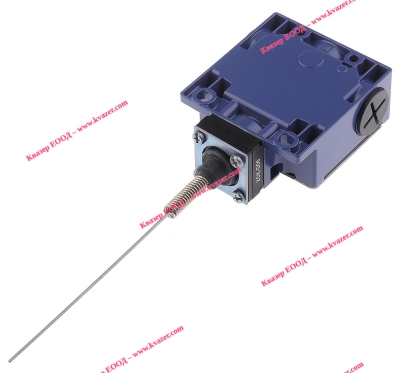

Spring return cat's whisker
|
|
Type of approach
|
Multi-directional approach
|
|
Electrical connection
|
Screw-clamp terminals, clamping capacity: 1 x 0.34...2 x 1.5 mm²
|
|
Cable entry
|
3 entries tapped for Pg 11 cable gland
|
|
Number of poles
|
2
|
|
Contacts type and composition
|
1 NO + 1 NC
|
|
Contacts operation
|
Snap action
|
|
Positive opening
|
Without
|
Complementary
|
Body material
|
Zamak
|
|
Switch actuation
|
By any moving part
|
|
Contacts insulation form
|
Zb
|
|
Number of steps
|
1
|
|
Minimum torque for tripping
|
0.13 N.m
|
|
Minimum actuation speed
|
0.01 m/min
|
|
Maximum actuation speed
|
1 m/s
|
|
Contact code designation
|
A300, AC-15 (Ue = 240 V, Ie = 3 A) conforming to EN/IEC 60947-5-1 appendix A
Q300, DC-13 (Ue = 250 V, Ie = 0.27 A) conforming to EN/IEC 60947-5-1 appendix A
|
|
Ithe cnvtl enclosed therm crrt
|
10 A AC
|
|
Ui rated insulation voltage
|
300 V conforming to CSA C22-2 No 14
300 V conforming to UL 508
500 V degree of pollution 3 conforming to IEC 60947-1
|
|
Resistance across terminals
|
<= 25 mOhm conforming to IEC 60255-7 category 3
|
|
Uimp rated imp wstdvoltage
|
6 kV conforming to IEC 60664
6 kV conforming to IEC 60947-1
|
|
Short circuit protection
|
10 A by gG cartridge fuse
|
|
Electrical durability
|
5000000 cycles, DC-13 inductive load type , 120 V
5000000 cycles, DC-13 inductive load type , 24 V
5000000 cycles, DC-13 inductive load type , 48 V
|
|
Mechanical durability
|
10000000 cycles
|
|
Product weight
|
0.25 kg
|
|
CAD overall width
|
64 mm
|
|
CAD overall height
|
201 mm
|
|
CAD overall depth
|
30 mm
|
|
Terminals description ISO n┬░1
|
(13-14)NO
(21-22)NC
|
Environment
|
Shock resistance
|
50 gn (duration = 11 ms)
conforming to IEC 60068-2-27
|
|
Vibration resistance
|
25 gn (f = 10 - 500 Hz)
conforming to IEC 60068-2-6
|
|
IP degree of protection
|
IP66 conforming to IEC 60529
|
|
IK degree of protection
|
IK05 conforming to EN 50102
|
|
Class of prot agnst elec shock
|
Class I conforming to IEC 61140
Class I conforming to NF C 20-030
|
|
Ambient air temp for op
|
-25...70 °C
|
|
Ambient air temp for storage
|
-40...70 °C
|
|
Protective treatment
|
TC
|
|
Product certifications
|
CCC
CSA
UL
|
|
Standards
|
CSA C22-2 No 14
EN 60204-1
EN 60947-5-1
IEC 60204-1
IEC 60947-5-1
UL 508
|
|
