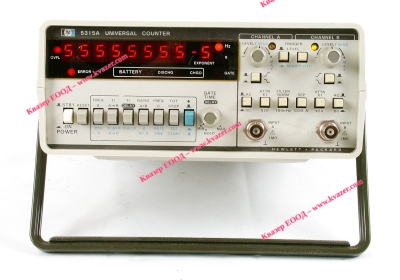

Универсален честотомер HP 5315A Hewlett-Packard
Арт.№: 45289
1 от 11
Безплатна доставка над
150.00
лв.
/
76.69
€
ППЦ:
лв.
лв.
1555.20
лв.
/
795.16
€
Валидност на промоцията
до
В наличност
Доставка и плащане
Резервирай
и вземи от Добави в любими
Твоите любими продукти Сравни
Характеристики Универсален брояч HP5315A Hewlett-PackardТехнически данни:
- Захранващо напрежение: 198-231V
- Честота на захранващото напрежение: 48-66Hz
- Максимална консумирана мощност: 15VA
- Постоянен ток - 0 Hz до 100 MHz
- Променлив ток - 30 Hz до 100 MHz
- Входна чуствителност:
- 10 mV RMS синусоида до 10 MHz
- 25 mV RMS синусоида до 100 MHz
- 1MΩ / 40pF
Информация
HP 5315A and HP 53168 Universal Counters Hewlett-Packard's economical HP 5315A and HP 5316B counters include a custom circuit called the MRC (Multiple Register Counter). Reciprocal counting techniques provide frequency resolution of 7 digits per second even at low frequencies. The continuously adjustable gate time allows automatic selection of sample size for easy trade-offs between measurement time and resolution. The MRC counters measure frequency to 100MHz-up to 1.0GHz with the optional Channel C-for CW and pulsed RF signals as narrow as 60 ms. Three time-interval measurements are possible: single-shot (100 ns to 100,000 s), averaging (down to 10 ps resolution), and time-interval delay. The MRC counters also measure/perform: Period A, Ratio NB, A By B (totalizes A input between two events on B), and Totalize (manually gated mode). Both channels offer input signal conditioning controls: ± slope, ± 2.5 Vdc trigger level, and ac/dc coupling. A separate/common switch and 100-kHz low-pass filter for Channel A are included.
