Токов трансформатор LEM LTSR 25-NP
Арт.№: 59144
1 от 1
Безплатна доставка над
150.00
лв.
/
76.69
€
ППЦ:
лв.
лв.
33.00
лв.
/
16.87
€
Валидност на промоцията
до
В наличност
Доставка и плащане
Резервирай
и вземи от Добави в любими
Твоите любими продукти Сравни

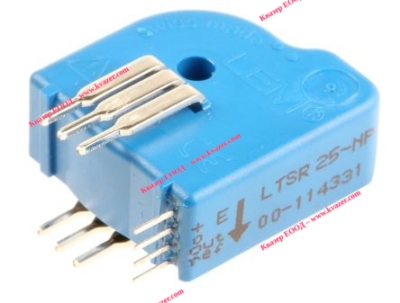

Характеристики Токов трансформатор LTSR 25-NP LEM
Current Transducer, LTSR Series, PCB, 25A, -80A to 80A, 0.2 %, Voltage Output, 5 Vdc
Информация
The LTSR 25-NP is a Current Transducer for the electronic measurement of DC, AC, pulsed with a galvanic isolation between the primary circuit (high power) and the secondary circuit (electronic circuit). Closed loop (compensated) current transducer using the Hall effect. Unipolar voltage supply. Compact design for PCB mounting. Incorporated measuring resistance. Extend the measuring range. Isolated plastic case recognized according to UL94V-0. High immunity to external interference. Possibility to feed the transducer reference from external supply.
- Excellent accuracy
- Very good linearity
- Low temperature drift
- Optimized response time
- Wide frequency bandwidth
- No insertion losses
- Current overload capability
