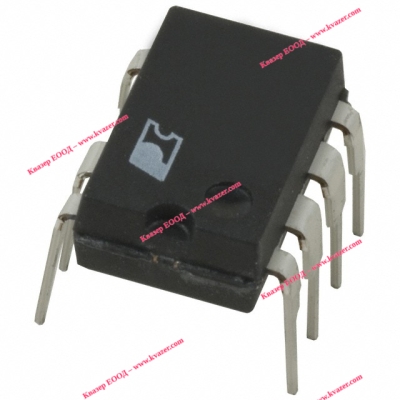

TNY268PN

Ultrafast IGBT

Product Highlights

TinySwitch-II Features Reduce System Cost
• Fully integrated auto-restart for short circuit and open
loop fault protection – saves external component costs
• Built-in circuitry practically eliminates audible noise with
ordinary dip-varnished transformer
• Programmable line under-voltage detect feature prevents
power on/off glitches – saves external components
• Frequency jittering dramatically reduces EMI (~10 dB)
– minimizes EMI filter component costs
• 132 kHz operation reduces transformer size – allows use
of EF12.6 or EE13 cores for low cost and small size
• Very tight tolerances and negligible temperature variation
on key parameters eases design and lowers cost
• Lowest component count switcher solution
• Expanded scalable device family for low system cost
