TM4431 IFM ELECTRONIC
Арт.№: 71634
1 от 1
Безплатна доставка над
с куриер Спиди
150.00
лв.
/
76.69
€
ППЦ:
лв.
лв.
249.00
лв.
/
127.31
€
Валидност на промоцията
до
В наличност
Доставка и плащане
Резервирай
и вземи от Добави в любими
Твоите любими продукти Сравни

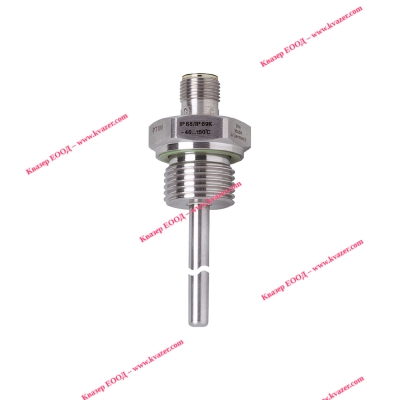

Характеристики Датчик температура TM4431 IFM ELECTRONIC
Temperature sensor with process connection
Информация
TM4431 IFM ELECTRONIC
Product characteristics
| Measuring range |
|
||
| Process connection | threaded connection G 1/2 external thread | ||
| Installation length EL[mm] | 100 |
Application
| Special feature | Gold-plated contacts | ||
| Measuring element | 1 x Pt 100; (to DIN EN 60751, class A) | ||
| Media | liquids and gases | ||
| Pressure rating |
|
||
| Minimum installation depth[mm] | 15 |
Electrical data
| Protection class | III |
Measuring/setting range
| Probe length L[mm] | 86 | ||
| Measuring range |
|
Accuracy / deviations
| Accuracy[K] | ± (0,15 K + 0,002 x|t|) |
Response times
| Dynamic response T05 / T09[s] | 1 / 3; (to DIN EN 60751) |
Operating conditions
| Ambient temperature[°C] | -25...80 |
| Storage temperature[°C] | -40...100 |
| Protection | IP 68; IP 69K |
Tests / approvals
| Shock resistance |
|
||
| Vibration resistance |
|
||
| MTTF[years] | 22831 |
Mechanical data
| Weight[g] | 134 |
| Housing | cylindrical |
| Dimensions[mm] | Ø 30 / L = 124 |
| Materials | stainless steel (316L/1.4404) |
| Materials (wetted parts) | stainless steel (316L/1.4404); FKM |
| Tightening torque[Nm] | 45 |
| Process connection | threaded connection G 1/2 external thread |
| Probe diameter[mm] | 6 |
| Installation length EL[mm] | 100 |
Remarks
| Remarks |
|
||
| Pack quantity | 1 pcs. |
Electrical connection
| Connection | Connector: 1 x M12; coding: A; Contacts: gold-plated |
