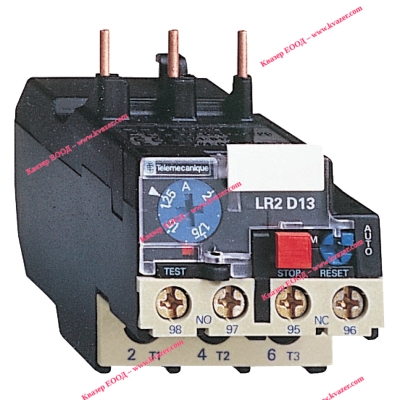

Термична защита 5.5-8A LR2D1312 Telemecanique
Арт.№: 71643
1 от 1
Безплатна доставка над
с куриер Спиди
150.00
лв.
/
76.69
€
ППЦ:
лв.
лв.
93.00
лв.
/
47.55
€
Валидност на промоцията
до
В наличност
Доставка и плащане
Резервирай
и вземи от Добави в любими
Твоите любими продукти Сравни
Характеристики Термична защита / Моторна защита / Термично реле 5.5-8A TeSys Telemecanique
- Производител: SCHNEIDER ELECTRIC / Telemecanique
- Тип аксесоари за контактори: термично реле
- Серия контактор: TeSys D
- Изводи: винтови клеми
- Обхват за настройване на макс. защита: 5,5...8A
- EAN: 3389110232592
Информация
| Range of product | TeSys D |
|---|---|
| Device short name | LR2D |
| Product or component type | Thermal overload relay |
| Relay application | Motor protection |
| Protection type | BS fuse 5 A - for control circuit GB2 circuit breaker 5 A - for control circuit GG fuse 5 A - for control circuit |
| Connections - terminals | Control circuit: screw clamp terminals 1 x 1…2.5 mm²flexible with cable end Control circuit: screw clamp terminals 1 x 1…2.5 mm²flexible without cable end Control circuit: screw clamp terminals 2 x 1…2.5 mm²flexible with cable end Control circuit: screw clamp terminals 2 x 1…2.5 mm²flexible without cable end Control circuit: screw clamp terminals 2 x 1…2.5 mm²solid without cable end |
| Quantity per set | Set of 10 |
| Network frequency | 50/60 Hz |
|---|---|
| Mounting support | Plate, with EverLink power terminal block Rail, with EverLink power terminal block |
| Tripping threshold | 1.14 +/-0.06 In A conforming to IEC 60947-4-1 |
| Surge withstand | 6 kV conforming to IEC 60801-5 |
| [Ue] rated operational voltage | 690 V AC 50/60 Hz for power circuit conforming to IEC 60947-4-1 |
| Phase failure sensitivity | Tripping current I 30 % of Ir on one phase, the others at Ir conforming to IEC 60947-4-1 |
| Tightening torque | Control circuit: 1.7 N.m on screw clamp terminals |
| Height | 121 mm |
| Width | 75 mm |
| Depth | 100 mm |
| Standards | EN 60947-5-1 IEC 60947-4-1 IEC 60947-5-1 CSA C22.2 No 14 Directive ATEX 94/9/EC UL 508 EN 60947-4-1 |
|---|---|
| Product certifications | GL RINA UL LROS (Lloyds register of shipping) CCC CSA GOST BV DNV ATEX INERIS |
| Protective treatment | TH conforming to IEC 60068 |
| IP degree of protection | IP2X conforming to VDE 0106 |
| Ambient air temperature for operation | -20…60 °C conforming to IEC 60947-4-1 |
| Fire resistance | 850 °C conforming to IEC 60695-2-1 |
| Shock resistance | 15 gn 11 ms conforming to IEC 60068-2-7 |
| Vibration resistance | 6 gn on plate conforming to IEC 60068-2-6 |
| Dielectric strength | 6 kV 50 Hz conforming to IEC 60255-5 |
