Tektronix J6505 сонда + адаптер за фотометър TEKTRONIX J16

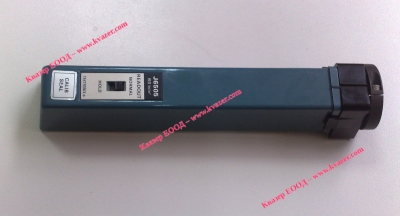

Tektronix J6505-2 LED probe
Red Ft. Candles Photometer Illuminance Probe for TEKTRONIX J16 Photometer/Radiometer
serial no. BO20813, new and unused
the set include 014-0047-00 adapter
Информация
LED TEST PROBE J6505-2
The J6505-2 is designated to measure illuminance of light sources having spectral outputs in the range of 600 to 710 nanometers. The principl application is for measurement of light-emitting diode (LED) output.
A silicon photodiode and a multilayer glass filter are used to provide a very close spectral match in the red region to allow accurate led measurments. A hold switch is provided to permit the reading to be stored any time. A 0.25-20 mounting socket is located on the bottem for use in mounting on an optical bench or tripod.
Specification (when used with the J16)
| Range, full scale | 1.99 to 19,900 lumens/meter2 |
| Max, sensitivity | 0.01 lumen/,meter2 |
| Calibration |
Within 5% of NBS standards and +/-1 digit in the last place, probes individually calibrated to tungsten light source traceable to NBS |
etc.... the datasheet is available in packing
