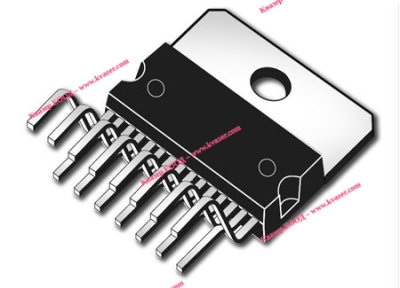

TDA7375A
TDA 7375 A - 2x37W DUAL-QUAD POWER AMPLIFIER FOR CAR RADIO
HIGH OUTPUT POWER CAPABILITY
2 x 43W/4W MAX
2 x 37W/4W EIAJ
2 x 26W/4W @14.4V, 1KHz, 10%
4 x 7W/4W @14.4V,1KHz, 10%
4 x 12W/2W @14.4V, 1KHz, 10%
Информация
2 x 37W DUAL-QUAD POWER AMPLIFIER FOR CAR RADIO
MINIMUM EXTERNAL COMPONENTS
COUNT:
– NOBOOTSTRAP CAPACITORS
– NOBOUCHEROT CELLS
– INTERNALLY FIXEDGAIN (26dB BTL)
ST-BY FUNCTION (CMOS COMPATIBLE)
NO AUDIBLE POP DURING ST-BY OPERATIONS
DIAGNOSTIC FACILITIES
– CLIPDETECTOR
– OUTTO GND SHORT
– OUTTO VS SHORT
– SOFTSHORT AT TURN-ON
– THERMAL SHUTDOWN PROXIMITY
Protections:
OUPUTAC/DC SHORT CIRCUIT
– TOGND
– TOVS
– ACROSSTHE LOAD
SOFT SHORT AT TURN-ON
OVERRATING CHIP TEMPERATURE WITH
SOFT THERMAL LIMITER
LOAD DUMP VOLTAGESURGE
VERYINDUCTIVE LOADS
FORTUITOUS OPEN GND
REVERSED BATTERY
ESD
