TA8194Z

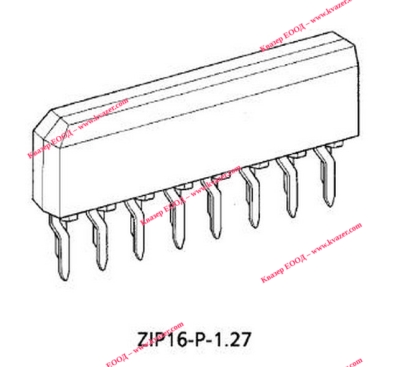

MUTING IC, ZIP16-P-1.27

Muting IC
The TA8194Z is a muting IC to prevent the “POP” noise made at
time of power on and off of audio equipments. This IC has 4
sensor terminals, muting control terminal and supply control
terminal. In case of sensing voltage rising, muting control signal
occurs and after that supply control signal occurs and muting
signal maintains for 1s. In case of sensing voltage setting, muting
control signal occurs and after that supply control signal stops.
This IC also has manual muting terminal and protection
function.

Features
4 sensor terminals: VCC, B1, B2, B3
Muting circuit control signal output
Power supply circuit control signal output
Manual muting control terminal
Protection function terminal
Operating supply voltage range: VCC (opr.) = 8~18.0V (Ta = 25°C)
