SWOB5E1 ROHDE & SCHWARZ Logarithmic Amplifier Plug-in

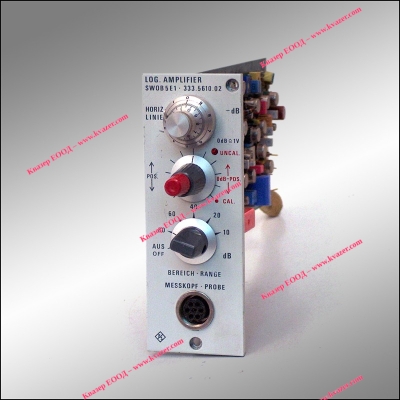

SWOB5-E1 Logarithmic Amplifier, Plugin for SWOB 5 Sweep Generator
The logarithmic amplifier has, in conjunction with a terminated probe or insertion unit, a noise limit of typically 170 µV, corresponding to a dynamic range of 70 dB with a sweep-generator output voltage of 0,5 V.
Switchable display range (80/60/40/20/10 dB). Can be shifted by more than 70 dB by the aid of a potentiometer. Any part of the display can thus be spread.
- Shiftable calibrated horizontal line
- Compensation of spurious signals
- Suitable for Active - Demodulator head -Z4 or probe -Z2 or feedthru head -Z3
