STRW6750F - Sanken

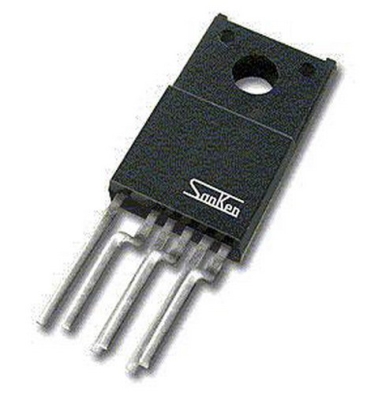

STR W 6750 F
FEATURES AND BENEFITS (cont’d)
■ Auto-Bias Function
Stable Burst Operation Without Generating Interference
■ Internal Off-Timer Circuit
■ Built-In Constant-Voltage Drive
■ Multiple Protections:
Pulse-by-Pulse Overcurrent Protection
Overload Protection with Auto Recovery
Latching Overvoltage Protection
Undervoltage Lockout with Hysteresis
Информация
Switching regulator
+115V,
TO-3P
Ic for Samsung
Universal-Input/58 W Off-Line Quasi-Resonant Flyback Switching Regulator
аналози:
STRW6753 = STRW6754 = STRW6756 = ( STRW6750F ) = ( STRW6765 )
STRW6553A = STRW6554A = STRW6556A ( Различават се по мощност )
Аналог - STR-W6753 - ABSOLUTE MAXIMUM RATINGS
at TA = +25°C
Control Supply Voltage, VCC . . . . 35 V
Drain-Source Voltage, VDSS . . . . . . 650 V
Drain Switching Current, ID . . . 11.2 A*
Peak Drain Switching Current,
IDM . . . . . . . . . . . . . . . . . . . . . 11.2 A
Single-Pulse Avalanche Energy,
EAS . . . . . . . . . . . . . . . . . . . 145 mJ
OCP/BD Voltage Range,
VOCP . . . . . . . . . . . . –1.5 V to +5 V
FB Input Current, IFB . . . . . . . . 10 mA
FB Voltage Range, VFP –0.5 V to +9 V
Package Power Dissipation, PD
control (VCC × ICC(ON)) . . . . . . 0.8 W
MOSFET (VDSS × ID) . . . See Graph
MOSFET Channel Temp., TJ . +150°C
Internal Frame Temp., TF . . . . +115°C
Operating Temperature Range,
TA . . . . . . . . . . . -20°C to +115°C†
Storage Temperature Range,
TS . . . . . . . . . . . . -40°C to +125°C
* Drain switching current is limited by temperature
(page 2) and safe operating area
(page 5).
†For the availability of parts meeting -40°C
requirements, contact Allegro’s Sales Representative.
