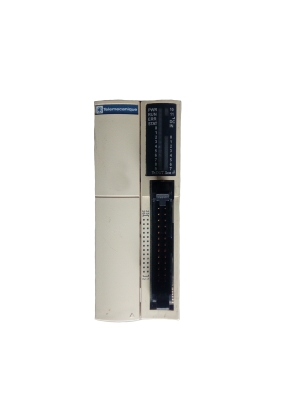

Schneider Electric TWDLMDA20DTK
Арт.№: 57588
1 от 1
Безплатна доставка над
150.00
лв.
/
76.69
€
ППЦ:
лв.
лв.
370.00
лв.
/
189.18
€
Валидност на промоцията
до
В наличност
Доставка и плащане
Резервирай
и вземи от Добави в любими
Твоите любими продукти Сравни
Характеристики Schneider Electric TWDLMDA20DTK
- Марка: Schneider Electric
- Модел: TWDLMDA20DTK
- Manufacturer Range: Twido
- No. of Poles: 3
- Connection Type: HE-10 Connector
- Input Type: 24 VDC
- IP Rating: IP65
- No. of Inputs: 12
- No. of Outputs: 8
- Output Type: Transistor
- Supply Voltage: 24 VAC
Информация
| input voltage limits |
20.4...26.4 V
|
|
|---|---|---|
| discrete input current |
5 mA for I0.0 to I0.1
5 mA for I0.6 to I0.7 7 mA for I0.2 to I0.5 7 mA for I0.8 to I0.11 |
|
| input impedance |
4700 Ohm for I0.2 to I0.5
4700 Ohm for I0.8 to I0.11 5700 Ohm for I0.0 to I0.1 5700 Ohm for I0.6 to I0.7 |
|
| filter time |
150 µs for I0.2 to I0.5 at state 0
150 µs for I0.8 to I0.11 at state 0 35 µs for I0.0 to I0.1 at state 1 35 µs for I0.6 to I0.7 at state 1 40 µs for I0.2 to I0.5 at state 1 40 µs for I0.8 to I0.11 at state 1 45 µs for I0.0 to I0.1 at state 0 45 µs for I0.6 to I0.7 at state 0 |
|
| insulation between channel and internal logic |
1500 Vrms for 1 minute
|
|
| insulation resistance between channel |
None
|
|
| discrete output voltage |
24 V
|
|
| output voltage limits |
20.4...28.8 V
|
|
| current per channel |
0.36 A for transistor output
|
|
| maximum current per output common |
1 A for transistor output
|
|
| response time |
300 µs for Q0.2 to Q0.7 at state 0
300 µs for Q0.2 to Q0.7 at state 1 5 µs for Q0.0 to Q0.1 at state 0 5 µs for Q0.0 to Q0.1 at state 1 |
|
| [Ures] residual voltage |
1 V at state 1
|
|
| maximum leakage current |
0.1 mA
|
|
| output overvoltage protection |
39 V
|
|
| maximum tungsten load |
8 W
|
|
| discrete output current |
300 mA
|
|
| I/O connection |
HE-10 connector
|
|
| maximum input/output number |
116 spring terminal block with I/O expansion module
148 HE-10 connector with I/O expansion module 84 removable screw terminal block with I/O expansion module |
|
| supply voltage limits |
20.4…26.4 V
|
|
| protection type |
Power protection by internal fuse
|
|
| maximum power consumption in W |
15 W base + 4 expension module
|
|
| inrush current |
1 A for transistor output
50 A for power supply |
|
| insulation resistance |
> 10 MOhm at 500 V, between I/O and earth terminals
> 10 MOhm at 500 V, between supply and earth terminals |
|
| program memory |
3000 instructions
|
|
| exact time for 1 Kinstruction |
1 ms
|
|
| system overhead |
0.5 ms
|
|
| memory description |
Internal RAM, 128 counters, no floating, no trigonometrical
Internal RAM, 128 timers, no floating, no trigonometrical Internal RAM, 256 internal bits, no floating, no trigonometrical Internal RAM, 3000 internal words, no floating, no trigonometrical Internal RAM, double words, no floating, no trigonometrical |
|
| battery type |
Lithium battery for internal RAM, autonomy: 30 days, charging time = 15 h, battery life = 10 year(s)
|
|
| integrated connection type |
Power supply
Non isolated serial link mini DIN, Modbus/character mode master/slave RTU/ASCII (RS485) half duplex, 38.4 kbit/s |
|
| counting input number |
2 counting input(s) at 20000 Hz 32 bits
2 counting input(s) at 5000 Hz 16 bits |
|
| positioning functions |
PWM/PLS 2 channel(s) at 7 kHz
|
|
| analogue input number |
1
|
|
| analogue input range |
0...10 V
|
|
| analogue input resolution |
9 bits
|
|
| input impedance |
100000 Ohm
|
|
| complementary function |
PID
Event processing |
|
| analogue adjustment points |
1 point adjustable from 0...1023
|
|
| status LED |
1 LEDERR
1 LEDSTAT 1 LED (green)PWR 1 LED (green)RUN 1 LED per channelI/O status |
| immunity to microbreaks |
10 ms
|
|
|---|---|---|
| dielectric strength |
1500 V for 1 minute, between I/O and earth terminals
500 V for 1 minute, between supply and earth terminals |
|
| product certifications |
CSA
UL |
|
| marking |
CE
|
|
| ambient air temperature for storage |
-25…70 °C
|
|
| ambient air temperature for operation |
0…55 °C
|
|
| relative humidity |
30…95 % without condensation
|
|
| IP degree of protection |
IP20
|
|
| operating altitude |
0...2000 m
|
|
| storage altitude |
0…3000 m
|
|
| vibration resistance |
0.075 mm at 10…57 Hz on 35 mm symmetrical DIN rail
1 gn at 57…150 Hz on 35 mm symmetrical DIN rail 1.6 mm at 2…25 Hz on plate or panel with fixing kit 4 gn at 25…100 Hz on plate or panel with fixing kit |
|
| shock resistance |
15 gn for 11 ms
|
