СЪЕДИНИТЕЛ G06D64P3BBBL-005
Арт.№: 46530
1 от 1
Безплатна доставка над
с куриер Спиди
150.00
лв.
/
76.69
€
ППЦ:
лв.
лв.
5.10
лв.
/
2.61
€
Валидност на промоцията
до
В наличност
Доставка и плащане
Резервирай
и вземи от Добави в любими
Твоите любими продукти Сравни

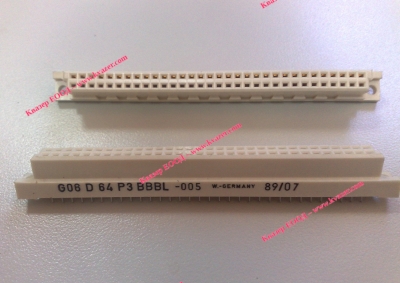

Характеристики СЪЕДИНИТЕЛ G06D64P3BBBL-005
Конектор DIN 41612, тип AB; PIN: 1x32, мъжки; ъглов; 2.54mm; THT; позлатен
Информация
5935-01-355-5405 ( G06D64P3BBBL, 01-355-5405 ) Characteristics Data |
|||||||
| MRC | Criteria | Characteristic | |||||
| AAQL | BODY STYLE | 19Q STRAIGHT TYPE | |||||
| ABHP | OVERALL LENGTH | 95.0 MILLIMETERS NOMINAL | |||||
| ABKW | OVERALL HEIGHT | 11.6 MILLIMETERS MAXIMUM | |||||
| ABMK | OVERALL WIDTH | 8.1 MILLIMETERS NOMINAL | |||||
| AEJN | DISTANCE BETWEEN MOUNTING FACILITY CENTERS | 89.9 MILLIMETERS MINIMUM AND 90.1 MILLIMETERS MAXIMUM | |||||
| AEBV | UNTHREADED MOUNTING HOLE DIAMETER | 8.1 MILLIMETERS NOMINAL | |||||
| AFRV | CONNECTOR LOCKING METHOD | FRICTION | |||||
| AFQW | MATING END QUANTITY | 1 | |||||
| AFQX | CONTACT POSITION ARRANGEMENT STYLE | AAAE 2 ROWS OF CONTACTS NON-INSERTED BOARD SINGLE MATING END | |||||
| CQZG | INSERT MATERIAL | PLASTIC POLYESTER GLASS FILLED SINGLE MATING END | |||||
| CXCG | INCLUDED CONTACT QUANTITY | 64 SINGLE MATING END SINGLE CONTACT GROUPING | |||||
| AFQZ | CONTACT REMOVABILITY | NONREMOVABLE SINGLE MATING END SINGLE CONTACT GROUPING | |||||
| AFRC | CONTACT MAXIMUM CURRENT RATING IN AMPS | 3.0 SINGLE MATING END SINGLE CONTACT GROUPING | |||||
| AFRD | CONTACT MAXIMUM AC VOLTAGE RATING IN VOLTS | 250.0 SINGLE MATING END SINGLE CONTACT GROUPING | |||||
| CQTZ | CONTACT MATERIAL | COPPER ALLOY SINGLE MATING END SINGLE CONTACT GROUPING | |||||
| CQYH | CONTACT SURFACE TREATMENT | GOLD AND NICKEL SINGLE MATING END SINGLE CONTACT GROUPING | |||||
| CRBJ | CONTACT SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-G-45204 MIL SPEC 1ST TREATMENT RESPONSE SINGLE MATING END SINGLE CONTACT GROUPING | |||||
| CSCF | TERMINAL TYPE | PIN SINGLE MATING END SINGLE CONTACT GROUPING | |||||
| CQTM | TERMINAL LOCATION | BACK SINGLE MATING END SINGLE CONTACT GROUPING | |||||
| PRMT | III PRECIOUS MATERIAL | GOLD | |||||
| PMWT | III PRECIOUS MATERIAL AND WEIGHT | 0.064 GOLD GRAINS, TROY | |||||
| PMLC | III PRECIOUS MATERIAL AND LOCATION | CONTACT SURFACES GOLD | |||||
