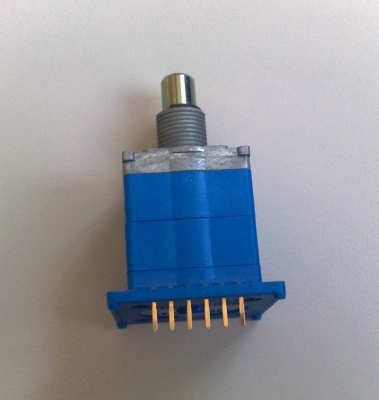

RT_BV Ротационен галетен превключвател, 10 позиции, 6pin
Арт.№: 10789
1 от 1
Безплатна доставка над
с куриер Спиди
76.69
€
/
149.99
лв.
ППЦ:
€
€
17.8952
€
/
35.00
лв.
Валидност на промоцията
до
В наличност
Доставка и плащане
Резервирай
и вземи от Добави в любими
Твоите любими продукти Сравни
Характеристики RTBV ITT JEANRENAUD
Ротационен галетен превключвател, 10 позиции, 6 nера за PCB
Switch Rotary 10 Round Shaft PC Pins 0.25A 25VAC 25VDC 5VA
Информация
1-2 Pole Coded Rotary Switches
Features/Benefits
- Totally sealed
- Detent angles, 15 , 22.5 , 30 and 36
- Multi pole
- Coding functions
- Robust construction
- RoHS Compliant
Typical Applications
- Telecommunications
- Military
- Instrumentation
- Heavy-duty industrial equipment
Electrical Data Silver Gold
- SWITCHING MODE: BBM* BBM*
- MAX. SWITCHING POWER: 5VA 0.2VA
- MAX. SWITCHING CURRENT: 250 mA 20 mA
- MIN. SWITCHING CURRENT: 10 mA 1 mA
- MAX. CARRYING CURRENT: 5A 1A
- MAX. VOLTAGE: 25V 25V
- MIN. VOLTAGE: 5V 1V
- BOUNCE: <5ms <5ms
- CONTACT RESISTANCE after life: <100mΩ <100mΩ
- DIALECTRIC STRENGTH between contacts or contacts and frame: 500 V rms 500 V rms
- INSULATION RESISTANCE between contacts or contacts and frame: >109Ω >109Ω
Mechanical Data
- NUMBER OF BANKS: 1 to 10
- OPERATING TORQUE: 5 Ncm±30% (with 1 module)
- MECHANICAL STOP RESISTANCE: >70 Ncm
- BUSHING MOUNTING TORQUE: 100 Ncm
Environmental Data
- OPERATING TEMPERATURE: -25C to +70C
- STORAGE TEMPERATURE: -40C to +85C
- TOTALLY SEALED: Immersion test acc. to MIL
- R22.097 F and NFC 20631/QF
- * BBM= Break Before Make (non-starting)
Materials
- HOUSING: PBT thermoplastic and PC thermoplastic
- STATIONARY CONTACTS & TERMINALS: Nickel plated Brass with additional Gold or Silver plating, insert molded in PBT thermoplastic.
- ROTOR: Printed circuit, gold or silver plated.
- ACTUATOR: Steel
- BUSHING: Brass
- HARDWARE: Stop pin and spring: Stainless steel All models are RoHS compliant and compatible.
