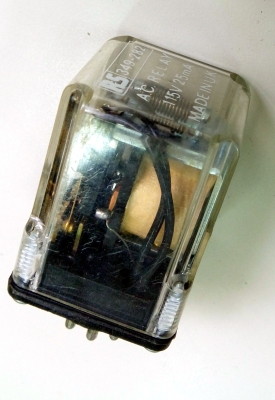

реле RS 349-282 115V 25mA
Арт.№: 50118
1 от 2
Безплатна доставка над
с куриер Спиди
76.69
€
/
149.99
лв.
ППЦ:
€
€
10.7371
€
/
20.9999
лв.
Валидност на промоцията
до
В наличност
Доставка и плащане
Резервирай
и вземи от Добави в любими
Твоите любими продукти Сравни
Характеристики реле RS 349-282 115V 25mA
- Производител: RS, Великобритания
- Тип реле: електромагнитно
- Конф. на контактите: 3PDT
- Номинално напрежение на бобината: 115V DC
- Товароспособност на контактите АС (при активен товар): 10 A / 240 VAC
Информация
RS 349-282
3PDT Non-Latching Relay Through Hole, 10 A, 115V ac
10A Industrial Relay
- Protected by a clear polycarbonate cover
- DIN Rail or Surface Mounting
- Contact Material: Ag + Au Flashed
- Contact Rating is 10A
- Maximum switching voltage 250 Vac, 30 Vdc
- Mechanical Life of 10^7 Operations (min)
- Electrical Life of 10^5 Operations (min)
- Maximum temperature at rated coil voltage 65°C
- Dimensions: H 53mm, W 36mm, D 36mm
Specifications
- Coil Voltage: 115V ac
- Contact Configuration: 3PDT
- Maximum Switching Current: AC 10 A
- Maximum Switching Current: DC 10 A
- Terminal: Type Through Hole
- Coil Resistance: 2000 Ω
- Maximum Switching Voltage: AC 240V ac
- Maximum Switching Voltage: DC 30V dc
- Application: Power
- Length: 35mm
- Depth: 35mm
- Height: 56mm
- Dimensions: 35 x 56 x 35mm
- Isolation Coil To Contact: 1500V ac
- Minimum Operating Temperature: -45°C
- Operating Temperature Range: -45 → +55°C
- Coil Power: 2.75VA
- Contact Material: Silver Cadmium Oxide
- Maximum Operating Temperature: +55°C
- Life: 10000000 (Mechanical) cycles
