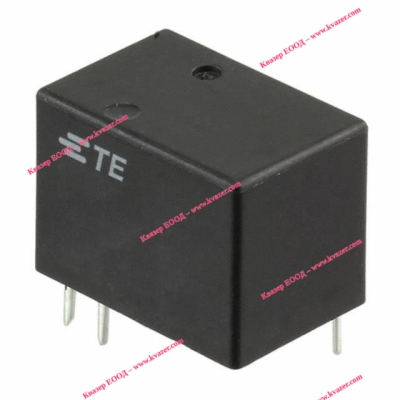

Реле QUAZ-SH-112D 12VDC
Арт.№: 50430
1 от 1
Безплатна доставка над
с куриер Спиди
150.00
лв.
/
76.69
€
ППЦ:
лв.
лв.
3.90
лв.
/
1.99
€
Валидност на промоцията
до
В наличност
Доставка и плащане
Резервирай
и вземи от Добави в любими
Твоите любими продукти Сравни
Характеристики Brumfield-Relay QUAZ-SH-112D 12VDC
- Coil Type: Non Latching
- Coil Current: 37.5mA
- Coil Voltage: 12VDC
- Contact Form: SPDT (1 Form C)
- Contact Rating (Current): 1A
- Switching Voltage: 120VAC, 24VDC - Max
- Operate Time: 5ms
- Release Time: 7ms
- Features: Sealed - Fully
- Mounting Type: Through Hole
- Termination Style PC Pin
- Coil Power: 450 mW
- Coil Resistance: 320 Ohms
Информация
Brumfield-Relay QUAZ SH 112D 12VDC
| Coil Type | Non Latching |
|---|---|
| Coil Current | 37.5mA |
| Coil Voltage | 12VDC |
| Contact Form | SPDT (1 Form C) |
| Contact Rating (Current) | 1A |
| Switching Voltage | 120VAC, 24VDC - Max |
| Turn On Voltage (Max) | 8.4 VDC |
| Turn Off Voltage (Min) | 0.6 VDC |
| Operate Time | 5ms |
| Release Time | 7ms |
| Features | Sealed - Fully |
| Mounting Type | Through Hole |
| Termination Style | PC Pin |
| Contact Material | Silver Palladium (AgPd), Gold (Au) |
| Coil Power | 450 mW |
| Coil Resistance | 320 Ohms |
