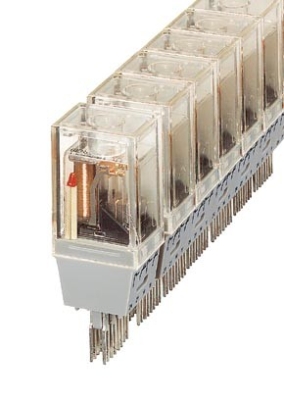

Реле Phoenix Contact ST-REL4-SG 24/21-21 /кат. №2825403
Арт.№: 47224
1 от 2
Безплатна доставка над
150.00
лв.
/
76.69
€
ППЦ:
лв.
лв.
119.00
лв.
/
60.84
€
Валидност на промоцията
до
В наличност
Доставка и плащане
Резервирай
и вземи от Добави в любими
Твоите любими продукти Сравни
Характеристики Индустриално реле Phoenix Contact ST-REL4-SG 24/21-21
- Каталожен номер: 2825403
- Бобина: 24 V DC
- 2 превключващи контакта 250 V AC/DC; 5A
Информация
Industrial Relays ST-REL4-SG 24/21-21
- Manufacturer: Phoenix Contact
- Product Category: Industrial Relays
-
Manufacturer Part #: 2825403
Coil side
Nominal input voltage UN 24 V DC Input voltage range in reference to UN 0.8 ... 1.1 Nominal input current at UIN 32 mA Typical response time 8 ms (with DC) Typical release time 15 ms (with DC) Operating voltage display Yes Protective circuit Damping diode, polarity protection Damping diode, polarity protection diode Contact side
Contact type Single contact, 2-PDT Contact material Ag, gold-flashed Maximum switching voltage 250 V AC/DC Maximum inrush current 5 A Limiting continuous current 5 A Interrupting rating (ohmic load) max. 120 W (at 24 V DC) 60 W (at 48 V DC) 50 W (at 60 V DC) 50 W (at 110 V DC) 70 W (at 220 V DC) 500 VA (for 250 V AC) General data
Width 27 mm Height 33 mm Depth 66.5 mm Test voltage relay winding/relay contact 1 kV AC (50 Hz, 1 min.) Test voltage PDT/PDT 1 kV AC (50 Hz, 1 min.) Ambient temperature (operation) -20 °C ... 60 °C Ambient temperature (storage/transport) -20 °C ... 70 °C Operating mode 100% operating factor Mechanical service life Approx. 107 cycles (approx. 106 with AC relay) Standards/regulations DIN VDE 0110b, Gr. C for 250 V DC DIN VDE 0160 (in relevant parts) DIN VDE 0110b, Gr. C for 250 V DC DIN VDE 0160 (in relevant parts)
