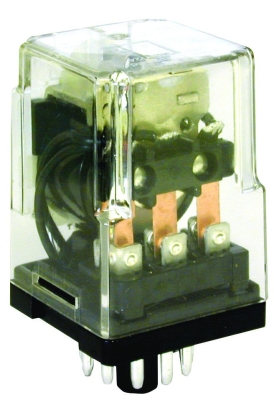

Реле KRPA-11DG-12, DPDT, 12 VDC, 10 A
Арт.№: 49618
1 от 1
Безплатна доставка над
с куриер Спиди
150.00
лв.
/
76.69
€
ППЦ:
лв.
лв.
39.00
лв.
/
19.94
€
Валидност на промоцията
до
В наличност
Доставка и плащане
Резервирай
и вземи от Добави в любими
Твоите любими продукти Сравни
Характеристики Реле KRPA-11DG-12, DPDT, 12 VDC, 10 A
- бобина 12 VDC
- Три превключващи контакта 10A 240VAC
Информация
TE CONNECTIVITY / POTTER & BRUMFIELD KRPA-11DG-12 POWER RELAY, DPDT, 12VDC, 10A, PLUG IN
- Manufacturer: TE Connectivity
- Product Category: General Purpose Relays
- RoHS: RoHS Compliant By Exemption Details
- Brand: TE Connectivity / P&B
- Product: Power Relays
- Type: Cube Style
- Contact Termination: Plug Pin
- Mounting Style: Socket
- Mounting Type: DIN Rail
- Contact Form: DPDT (2 Form C)
- Contact Current Rating: 10 A
- Switching Voltage: 240 VAC
- Coil Termination: Plug Pin
- Coil Type: Non-Latching
- Coil Voltage: 12 VDC
- Coil Resistance: 120 Ohms
- Coil Current: 100 mA
- Contact Material: Silver Cadmium Oxide
- Height: 50.8 mm
- Length: 35.71 mm
- Maximum Switching Current: 10 A
- Power Consumption: 1.2 W
- Series: KRPA
- Factory Pack Quantity: 25
- Width: 35.71 mm
- Part # Aliases: 4-1393104-3
