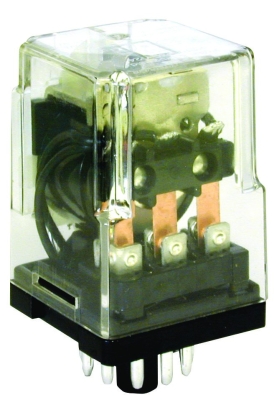

Реле KRPA-11AG-120, DPDT, 120 VAC, 10 A
Арт.№: 49617
1 от 1
Безплатна доставка над
с куриер Спиди
150.00
лв.
/
76.69
€
ППЦ:
лв.
лв.
39.00
лв.
/
19.94
€
Валидност на промоцията
до
В наличност
Доставка и плащане
Резервирай
и вземи от Добави в любими
Твоите любими продукти Сравни
Характеристики Реле KRPA-11AG-120, DPDT, 120 VAC, 10 A
- бобина 120 VAC
- Три превключващи контакта 10A 240VAC
Информация
TE CONNECTIVITY / POTTER & BRUMFIELD KRPA-11AG-120 Power Relays, KRPA Series, Power - General Purpose, Non Latching, DPDT, 120 VAC, 10 A
- Coil Current: 17.5mA
- Coil Resistance: 2.25kohm
- Coil Type: Non Latching
- Coil Voltage: 120VAC
- Coil Voltage VAC Nom: 120V
- Contact Configuration: DPDT
- Contact Current: 10A
- Contact Current Max: 10A
- Contact Material: Silver Cadmium Oxide
- Contact Voltage AC Nom: 240V
- Contact Voltage VAC: 240V
- Contact Voltage VDC: -
- External Depth: 35.71mm
- External Height: 50.8mm
- External Width: 35.71mm
- Nom Operating Power: 2.1VA
- Product Range: KRPA Series
- Relay Mounting: Socket
- Relay Terminals: Quick Connect
- Relay Type: Power - General Purpose
