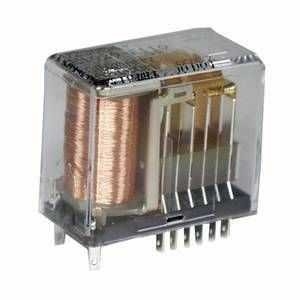

Реле Axicom V23054 E1020-F110
Арт.№: 47312
1 от 3
Безплатна доставка над
150.00
лв.
/
76.69
€
ППЦ:
лв.
лв.
84.00
лв.
/
42.95
€
Валидност на промоцията
до
В наличност
Доставка и плащане
Резервирай
и вземи от Добави в любими
Твоите любими продукти Сравни
Характеристики Axicom V23054-E1020-F110 5A, size III, 7-1393813-2 (ex. Siemens)
- 4 C/O contacts ( change-over / 4PDT ) 5 A / 250 V AC
- plug-in connection
- 24 V DC
Информация
Product Type Features:
- Series = Cradle S/V23054/V23062
- Terminal Type = Plug-in, Solder
Electrical Characteristics:
- Contact - Current Class = 2A to 5A Class
- Contact - Rated Current (A) = 5
- Contact - Limiting Continuous Current (A) = 5
- Contact - Limiting Making Current (A) = 5
- Contact - Limiting Breaking Current (A) = 5
- Insulation - Initial Dielectric Between Coil/Contact Class = 500V to 1000V Class
- Insulation - Initial Dielectric Between Open Contacts (V rms) = 500
- Insulation - Initial Dielectric Between Contacts and Coil (V rms) = 1000
- Contact - Rated Voltage (VAC) = 250
- Contact - Rated Voltage (VDC) = 260
- Contact - Switching Voltage Max. (VAC) = 250
- Contact - Switching Voltage Max. (VDC) = 260
- Contact - Limiting Short-Time Current (A) = 5
- Coil - Rated Voltage (VDC) = 20
- Coil - Resistance (Ω) = 390
- Coil - Rated Power, DC (mW) = 1026
- Coil - Rated Power Class = 1W to 1.5W Class
- Insulation - Initial Dielectric Between Adjacent Contacts (V rms) = 100
- Insulation - Initial Insulation Resistance (MΩ) = 1000
Dimensions:
- Mechanical - Length Class = 30mm to 35mm Class
- Length (mm [in]) = 35.00 [1.378]
- Mechanical - Width Class = 16mm to 20mm Class
- Width (mm [in]) = 19.00 [0.748]
- Mechanical - Height Class = 25mm to 30mm Class
- Height (mm [in]) = 30.00 [1.181]
Body Features:
- Weight (g [oz]) = 27.00 [0.952]
- Mount Type = Socket
Contact Features:
- Contact Material = Ag, gold flashed
- Contact - Number of Poles = 4
Configuration Features:
- Contact - Arrangement = 4 Form C (CO)
- Coil - Magnetic System = Monostable, DC
Industry Standards:
- RoHS/ELV Compliance = RoHS compliant, ELV compliant
- Lead Free Solder Processes = Wave solder capable to 260°C, Wave solder capable to 240°C, Wave solder capable to 265°C
- RoHS/ELV Compliance History = Converted to comply with RoHS directive
Environmental:
- Environmental - Category of Protection = RTI
- Environmental - Ambient Temperature, Max. (°C [°F]) = 70 [158]
- Environmental - Ambient Temperature Class = 50°C to 70°C Class
Packaging Features:
- Packaging Method = Box
Other:
- Brand = Axicom
