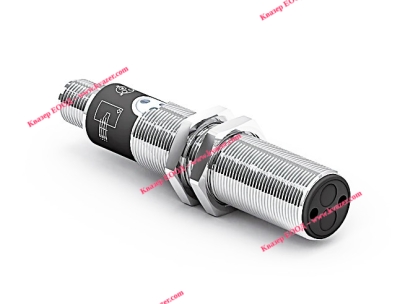

Рефлекторен фотодатчик TC22PA3 Wenglor
Арт.№: 71623
1 от 1
Безплатна доставка над
с куриер Спиди
76.69
€
/
149.99
лв.
ППЦ:
€
€
162.5908
€
/
318.00
лв.
Валидност на промоцията
до
В наличност
Доставка и плащане
Резервирай
и вземи от Добави в любими
Твоите любими продукти Сравни
Характеристики Дифузен рефлекторен фотодатчик TC22PA3 Wenglor
Wenglor - TC22PA3 PHOTOELECTRIC SENSOR, DIFFUSE, M18, 200MM RANGE, PNP LO DO, M12 CONNECTOR, STAINLESS STEEL, INFRARED
- REFLEX SENSOR
- 200MM DETECTION RANGE
- 10-30VDC
Информация
TC22PA3 Reflex Sensor Energetic
Optical Data | |
|---|---|
| Range | 200 mm |
| Switching Hysteresis | < 15 % |
| Light Source | Infrared Light |
| Service Life (T = +25 °C) | 100,000 h |
| Max. Ambient Light | 10,000 Lux |
| Opening Angle | 12 ° |
Electrical Data | |
|---|---|
| Supply Voltage | 10 ... 30 V DC |
| Current Consumption (Ub = 24 V) | < 40 mA |
| Switching Frequency | 1,500 Hz |
| Response Time | 330 µs |
| Temperature Drift | < 10 % |
| Temperature Range | -25 ... 60 °C |
| Switching Output Voltage Drop | < 2.5 V |
| PNP Switching Output/Switching Current | 200 mA |
| Residual Current Switching Output | < 50 µA |
| Short Circuit Protection | yes |
| Reverse Polarity Protection | yes |
| Overload Protection | yes |
| Protection Class | III |
Mechanical Data | |
|---|---|
| Setting Method | Potentiometer |
| Housing Material | Stainless steel, V2A (1.4305 / 303) |
| Full Encapsulation | yes |
| Degree of Protection | IP67 |
| Connection | M12 × 1; 4-pin |
| Weight | 38 g |
Safety-relevant Data | |
|---|---|
| MTTFd (EN ISO 13849-1) | 2,227.16 a |
Output | |
|---|---|
| PNP NC, PNP NO | yes |
Adjustable parameters | |
|---|---|
| Circuit | NC NC+NO NO |
