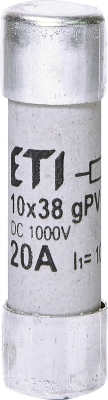

Предпазител 1000V DC за фотоволтаични панели ETI POLAM 002625108 CH 10x38mm gPV 20А

ETI POLAM 002625108 CH 10x38mm gPV 20А

• ETI Code: 002625108
• Description: CH10x38gPV 20A 1000V UL
• Class name: Fuse link
• Type: CH
• Size: 10x38
• Rated current (A): 20
• Rated DC voltage (V): 1000
• Characteristics: gPV
• L/R (ms): 2
• Breaking capacity DC (kA): 10
• Application: For protection of photovoltaic modules
• Power dissipation (0,7x In) (W): 1,3
• Power dissipation (W): 3,2
• Operating joule integral (A2s): 245
• Prearcing joule integral (A2s): 86
• Standards: IEC 60269-6, UL 2579, UL 248-1
• UL certificate: E347771
