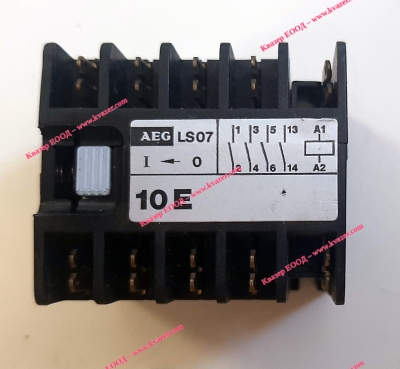

Помощен контактор AEG LS07 бобина 24V DC

Auxiliary contactors SH04

Three pole minicontactors
7A (AC3)
16A (AC1)

Control circuit:
Alternating current up to 230VAC at 50/60Hz
Direct current up to 110VDC
Low consumption:
Only 1.2 WDC
2.4W In AC

Power circuit: Up to 400VAC
Rating:
7.3A AC3 at 400V
16A AC1
Ith 16A
AC15: - 6A 230V
4A 400V

Motor rating AC-3 duty, 3 phases
230V 1.5kW
400/415V 3kW

Very reduced dimensions: 42/45/44mm (HxWxD)
Lateral carrier
Terminal numbering in accordance with EN 50012
Fixing by clipping onto 35mm DIN rail (EN 50022-35) or by screws

Terminal versions:
- Screws as standard
- Solder pin for circuit board application
Integrated one auxiliary contact block: 1NO or 1NC

No accessories
- No available additional auxiliary contacts
- Stand-alone thermal protection
