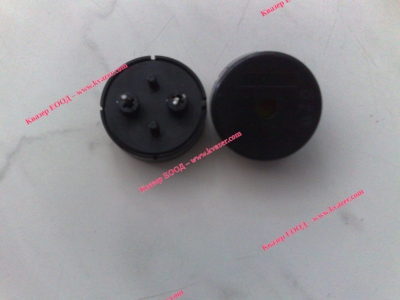

ПИЕЗО ЗУМЕР Murata PKM22EPP-40 75dB 22MM
Арт.№: 45039
1 от 2
Безплатна доставка над
с куриер Спиди
150.00
лв.
/
76.69
€
ППЦ:
лв.
лв.
3.90
лв.
/
1.99
€
Валидност на промоцията
до
В наличност
Доставка и плащане
Резервирай
и вземи от Добави в любими
Твоите любими продукти Сравни
Характеристики ПИЕЗО ЗУМЕР Murata PKM22EPP-40 75dB 25Vp-pр max 22мм, без вграден генератор
Информация
| Oscillation circuits | Not built-in |
|---|---|
| Size | φ22.0×8.2 mm |
| Frequency | 4.0kHz |
| Sound Pressure Level | 87dB (typ.) |
| Sound Pressure Level | 75dB (min.) |
| Measure Condition of Sound Pressure Level | [±1.5Vo-p,4.0kHz,square wave,10cm] |
| Capacitance | 12nF |
| Capacitance Tolerance | ±30% |
| Measurement Condition of Capacitance | [1kHz] |
| Maximum input voltage | ±15.0Vo-p max. |
| Operating Temperature Range | -20℃ to 70℃ |
| Storage Temperature Range | -30℃ to 80℃ |
| Shape | Lead |
| Lead Shape | Lead Wire type(Twist type) |
| Lead length | Lead length:6.5mm |
| Drive Type | External Drive |
| EIAJ Part Number | PS-RP2-C22-40 |
| Mass | 2864mg |
Externally driven piezoelectric sounders are used in digital watches, electronic calculators, telephones and other equipment. They are driven by a signal (ex.: 2048Hz or 4096Hz) from an LSI and provide melodious sound.
Features
1. Low power consumption
2. No noise and high reliability
