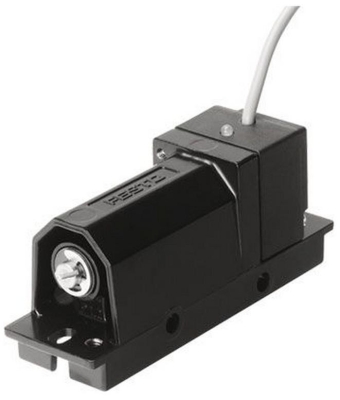

PEN-M5 (8625) PE конвертор на пневматично налягане в електрически сигнал FESTO
Информация
Part Number: 8625
Тегло [kg]: 0.24 PE converter Pneumatic/electrical signal converter, selector switch for pressure, vacuum and differential pressure, on 2n sub-base
|
PE converters PEN-M5, for mounting frame 2N Technical data |
|||
|
General technical data |
|||
|
Constructional design |
Pneumatic/electrical differential pressure switch |
||
|
Type of mounting |
On mounting frame 2N |
||
|
Via through-holes |
|||
|
Operating medium |
Compressed air, filtered (lubricated or unlubricated) or vacuum |
||
|
Pneumatic connection |
M5 |
||
|
Electrical connection |
2.5m cable 3x0.14mm2 |
||
|
Switch output |
Contactless switching output (normally open function) |
||
|
Max. switching frequency |
[Hz] |
70 |
|
|
Materials |
|
Housing: Die-cast zinc |
|
|
Note on material |
|
Free of copper, PTFE and silicone |
|
|
Weight |
[g] |
240 |
|
|
|
|
||
|
Operating and environmental conditions |
|||
|
Operating pressure |
[bar] |
–0.95 ... +8 bar |
|
|
Threshold value setting range |
[bar] |
–0.8 ... +8 bar |
|
|
Ambient temperature |
[bar] |
–20 ... +60 °C |
|
|
Electrical data |
|
||
|
Operating voltage range |
[V DC] |
12 ... 30 |
|
|
Switching status display |
|
Yes |
|
|
Adjustable hysteresis |
|
Graph 4 / 6.2-19 |
|
|
Max. output current |
[mA] |
350 |
|
|
Protection against short circuit |
Yes |
||
|
Protection against polarity reversal |
Yes |
||
|
CE symbol |
In accordance with EU Directive 89/336/EU |
||
|
Protection class to EN 60 529 |
IP67 |
||
