ОСЦИЛОСКОП ЦИФРОВ TEKTRONIX TDS 210 60 MHz 1GS/s

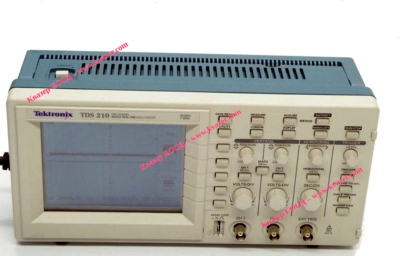

TEKTRONIX TDS 210 цифров осцилоскоп
- Тип осцилоскоп: цифров
- Честотна лента: ≤60MHz
- Брой канали: 2
- Време на нарастване: 5,8ns
- Дискретизация 1Gsps (в реално време)
- Развивка: 5ns...5s/дел.
- Вертикална резолюция: 8бит
- Входен импеданс: 1MΩ
- Свързване на входа: AC, DC, GND
- Входно напрежение макс.: 300Vrms
- Входна чувствителност: 2mV/дел...5V/дел.
Малко употребяван.
Информация
Tektronix TDS210 60MHz, 1MSa/s, 2ch Digital Oscilloscope
The Tektronix TDS210 oscilloscope is a graph-displaying device – it draws a graph of an electrical signal. In most applications, the graph shows how signals change over time: the vertical (Y) axis represents voltage and the horizontal (X) axis represents time. The intensity or brightness of the display is sometimes called the Z axis.
The Tektronix TDS210 oscilloscope's simple graph can tell you many things about a signal, such as: the time and voltage values of a signal, the frequency of an oscillating signal, the “moving parts” of a circuit represented by the signal, the frequency with which a particular portion of the signal is occurring relative to, other portions, whether or not a malfunctioning component is distorting the signal, how much of a signal is direct current (DC) or alternating current (AC) and how much of the signal is noise and whether the noise is changing with time.
- 2 independent 60 MHz channels
- 1 GS/s Sample Rate on all Channels
- Dual timebase
- Very small and lightweight 12"x6"x4.75", 3.25 lb.
- Automatic period, frequency, cycle RMS, mean & peak-to-peak measurements
- Multi-language User Interface
- Autoset and waveform and Setup Memories
- Extended Capabilities with Optional Modules, Software and Probing
| Form Factor | Benchtop |
| Bandwidth | 60 MHz |
| Number of Channels | 2 ch |
| Simultaneous Channels | 2 ch |
| Simultaneous Maximum Sampling Rate/ch | 1 GSa/s |
| One ch. only max. sampling rate | 1 GSa/s |
| Max. Record Length | 2500 pt/sec |
| Min. Vertical Sensitivity | 2 mV/div |
| Maximum Vertical Sensitivity | 5 V/div |
| Rise time | 5.8 ns |
| Number of Bits | 8 bits |
| Input Impedance | 1 MOhm |
| Input Impedance (alternate) | 1 Ohm |
| Input Coupling | AC,DC,GND |
| Maximum Input Voltage | 300 Vrms |
| Main time base - lowest | 5 ns/div |
| Main time base - highest | 5 s/div |
| Timebase accuracy | .01 % |
| Trigger Source | External,Internal |
| Trigger Modes | Auto,Edge,Normal,Single,Video |
| Display Type | CRT Monochrome |
| Display modes | Dot,Persistence,Vector |
Видеопредставяне от youtube
TEKTRONIX TDS 210 Осцилоскоп
- Тип осцилоскоп: цифров
- Честотна лента: ≤60MHz
- Брой канали: 2
- Време на нарастване: 5,8ns
- Дискретизация 1Gsps
- Развивка: 5ns...5s/дел.
- Източник на захранване: 120...240VAC
- Маса: 1.5kg
- Вертикална резолюция: 8бит
- Входен импеданс: 1MΩ
- Външни размери (шир. х дълб. х вис.): 304,8 x 120,7 х 151,4mm
- Свързване на входа: AC, DC, GND
- Входно напрежение макс.: 300Vrms
- Входна чувствителност: 2mV/дел...5V/дел.
