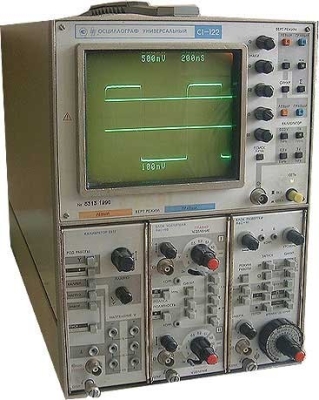

Осцилоскоп C1-122 100MHz
Осцилограф C1-122 100MHz, 4 канален, руски
не използван, консервиран, окомплектован с 3 сонди, удължинелни кабели за блокове, 3 оргинални книжки с инструкции + калибратор.
- Тип осциллографа: аналоговый, стационарный, универсальный
- Количество: каналов 4
- Полоса пропускания: 100 МГц
- Синхронизация (запуск): задержка
- Дисплей лучевая: трубка
Информация
Specifications
-
Four channels (with two A4C-90 units)
-
100 MHz bandwidth at a 5mV/div.,
deflection factor
-
100mmx120mm useful screen area
-
17,5 kV accelerating voltage
-
Character display on the CRT screen
Vertical deflection system
Plug-in unit type A4C-90 - amplifier
| Specifications | |
|
Four channels (with two A4C-90 units) 100 MHz bandwidth at a 5mV/div., deflection factor 100mmx120mm useful screen area 17,5 kV accelerating voltage Character display on the CRT screen |
|
|
Vertical deflection system Plug-in unit type A4C-90 - amplifier |
|
|
Bandwidth DC to 100 MHz Rise time 3,5 ns Number of channels 2 Deflection factor 5mV/div to 5V/div. Input impedance 1 MW , 47 pF |
|
|
Horizontal deflection system Plug-in unit Sweep generator A4C-91 |
|
|
Range of sync. Frequencies 20 Hz to 100 MHz Sweep generator „A", defl. factor 5ns/div. to 50 ms/div. Sweep generator „B" , defl. factor 20ns/div. to 5 ms/div Minimum sync. level, internal 0,8 div. Minimum sync. level, external 0,4 V |
|
|
Calibrator |
|
|
Output voltage : square wave with an amplitude of 3 V;0,3 V; 0,003 V ( to within 1% ) and repetition rate of 1 kHz (to within 0,2 %); Square wave with an amplitude of 1 V ( to within 1% ) and repetition rate of 1 MHz (to within 0,2 % ) |
|
| General | |
|
Mains 220v +/-22V,50 Hz Power consumption 150 VA Mass 17 Kg |
