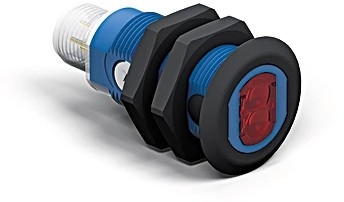

OLDK503A0002 Wenglor
Арт.№: 71717
1 от 3
Безплатна доставка над
с куриер Спиди
76.69
€
/
149.99
лв.
ППЦ:
€
€
96.6342
€
/
189.0001
лв.
Валидност на промоцията
до
В наличност
Доставка и плащане
Резервирай
и вземи от Добави в любими
Твоите любими продукти Сравни
Характеристики OLDK503A0002 Retro-Reflex Sensor Universal
Датчик: фотоелектричен
Информация
OLDK503A0002 Wenglor - Retro-Reflex Sensor Universal
Optical Data | |
|---|---|
| Range | 5,000 mm |
| Reference Reflector/Reflector Foil | RQ100BA |
| Switching Hysteresis | < 15 % |
| Light Source | Red Light |
| Polarization Filter | yes |
| Service Life (T = +25 °C) | 100,000 h |
| Max. Ambient Light | 10,000 Lux |
| Opening Angle | 5 ° |
| Two-Lens Optic | yes |
Electrical Data | |
|---|---|
| Supply Voltage | 10 ... 30 V DC |
| Current Consumption (Ub = 24 V) | < 30 mA |
| Switching Frequency | 700 Hz |
| Response Time | 714 µs |
| Temperature Drift | < 10 % |
| Temperature Range | -25 ... 60 °C |
| Switching Output Voltage Drop | < 2.5 V |
| PNP Switching Output/Switching Current | 200 mA |
| Residual Current Switching Output | < 50 µA |
| Short Circuit Protection | yes |
| Reverse Polarity Protection | yes |
| Overload Protection | yes |
| Protection Class | III |
Mechanical Data | |
|---|---|
| Setting Method | Potentiometer |
| Housing Material | Plastic, ABS/GF |
| Degree of Protection | IP67 |
| Connection | M12 × 1; 4-pin |
| Weight | 15 g |
Safety-relevant Data | |
|---|---|
| MTTFd (EN ISO 13849-1) | 2,165.94 a |
General Data | |
|---|---|
| Scope of delivery | 1 × mounting console |
| Packaging unit | 1 Piece |
Output | |
|---|---|
| PNP NC, PNP NO | yes |
Adjustable parameters | |
|---|---|
| Circuit | NC NC+NO NO |
Table 1 | |||
|---|---|---|---|
| Working Distance | 0,2 m | 0,5 m | 5 m |
| Light Spot Diameter | 17 mm | 35 mm | 330 mm |
