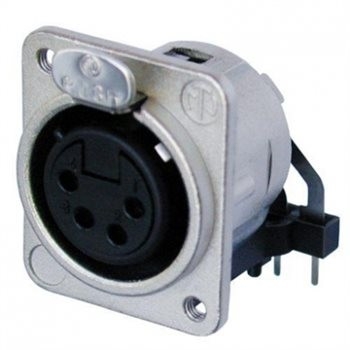

Neutrik Гнездо КАНОН XLR женски, PIN 4, ъглови 90°, запояване PCB
Арт.№: 59174
1 от 1
Безплатна доставка над
с куриер Спиди
76.69
€
/
149.99
лв.
ППЦ:
€
€
10.1236
€
/
19.80
лв.
Валидност на промоцията
до
В наличност
Доставка и плащане
Резервирай
и вземи от Добави в любими
Твоите любими продукти Сравни
Характеристики Neutrik XLR 4 Pin Female Chassis Rear Insert Hoz PCB Mount NC4FDM3-H-D
4 pole female receptacle, horizontal PCB mount, Nickel housing, silver contacts, M3 mounting holes
Universal D-size metal body XLR panel mount series. UL recognized component.
Информация
NC4FDM3-H
- Connection: Type XLR
- Gender: female
Electrical
- Capacitance between contacts: ≤ 7 pF
- Contact resistance: ≤ 5 mΩ
- Dielectric strength: 1,5 kVdc
- Insulation resistance: > 10 GΩ (initial)
- Rated current per contact: 10 A
- Rated voltage: < 50 V
Mechanical
- Insertion force: ≤ 20 N
- Withdrawal force: ≤ 20 N
- Lifetime: > 1000 mating cycles
- Wiresize
- Wiring Horizontal: PCB mount
- Locking device: Latch lock
- Mounting direction: Rear mounting
- Chassis: shape D
- Mounting: Mounting holes with M3 threads
Material
- Contact plating: 2 µm Ag over 2 µm Ni
- Contacts: Brass (CuZn39Pb3)
- Insert: Polyamide (PA66)
- Locking element: Steel Ck67
- Shell: Zinc diecast (ZnAl4Cu1)
- Shell plating: Nickel
Environmental
- Approvals UL
- Flammability UL 94 V-0
- Standard compliance IEC 61076-2-103
- Protection class IP 40
- Solderability Complies with IEC 68-2-20
- Temperature range -30 °C to +80 °C
