MP-D70P-AC/DC, 100-240V, AN 45486
Арт.№: 50971
1 от 7
Безплатна доставка над
150.00
лв.
/
76.69
€
ППЦ:
лв.
лв.
390.00
лв.
/
199.40
€
Валидност на промоцията
до
В наличност
Доставка и плащане
Резервирай
и вземи от Добави в любими
Твоите любими продукти Сравни

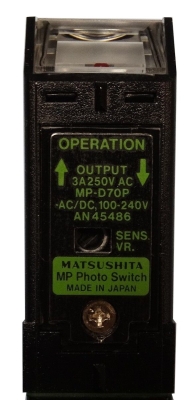

Характеристики MP-D70P-AC/DC, 100-240V, AN45486 - Matsushita photoelectric sensor, NO + NC diffuse 250VAC, range 7m.
Дифузен фотодатчик MP-D70P (AN45486), еднокорпусен: 98x80x25 mm,
Обхват на сензора: 700 mm
Оригинален Matsushita Electric Works Ltd, Japan, NOS
Информация
Matsushita MP-D70P, 220VAC/DC NO + NC diffuse 250VAC, range 7000mm (7m), plastic.
- General Information:
- Brand: Matsushita
- Model: MP-D70P
- MPN: AN45486
- Country of Manufacture: Japan
Technical Information:
- Contact system: NO+NC
- Supply voltage: 100-240VAC/DC
- Operating current max: 3 A
- Power consumption: 2 W
- Sensing distance: 0-700 m (0.7m) (max: 2 meters)
- Insulation resistance: >100МΩ/500VDC
- Contacts resistance: 100mΩ/6VDC
- Operating temperature: -10°C to +55°C
- Ambient humidity: RH85% (with no condensation)
- Optical lence material: glass
- Body material: PVC
- Dimensions: 98x80x25mm
- Mounting: 2 x Ф4 mm
- Protection grade/Sealing: IP66
- Electrical life: 2x10000
- Mechanical life: 1x1000000
- Maximum flux light in the working range: 10000 Lx
Features:
- Working status indicatior: LED
- Sensitivity control
- Working in the infrared spectrum
- Infrared wavelength: 950 nm
