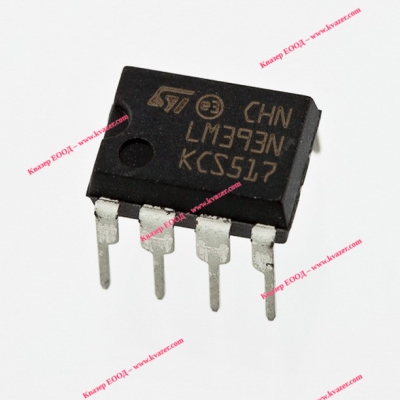

LM393AP
LM 393 AP, еквивалент на LM393N, KIA393P
- Разпродаден, виж LM393P
- Описание
- IC GENERAL PURPOSE COMP DUAL 1.4µS DIP-8
- Comparator Type:Differential
- No. of Comparators:2
- Response Time:1.4µs
- IC Output Type:CMOS, MOS, TTL, DTL, ECL
- Supply Current:800µA
- Supply Voltage Range:± 1V to ± 18V
Информация
Features
■ Wide single-supply voltage range or dual
supplies: +2 V to +36 V or ±1 V to ±18 V
■ Very low supply current (0.4 mA) independent
of supply voltage (1 mW/comparator at +5 V)
■ Low input bias current: 25 nA typ.
■ Low input offset current: ±5 nA typ.
■ Low input offset voltage: ±1 mV typ.
■ Input common-mode voltage range includes
ground
■ Low output saturation voltage: 250 mV typ.
(Isink = 4 mA)
■ Differential input voltage range equal to the
supply voltage
■ TTL, DTL, ECL, MOS, CMOS compatible
outputs
Description
These devices consist of two independent low
voltage comparators designed specifically to
operate from a single supply over a wide range of
voltages. Operation from split power supplies is
also possible.
These comparators also have a unique
characteristic in that the input common-mode
voltage range includes ground even though
operated from a single power supply voltage.
